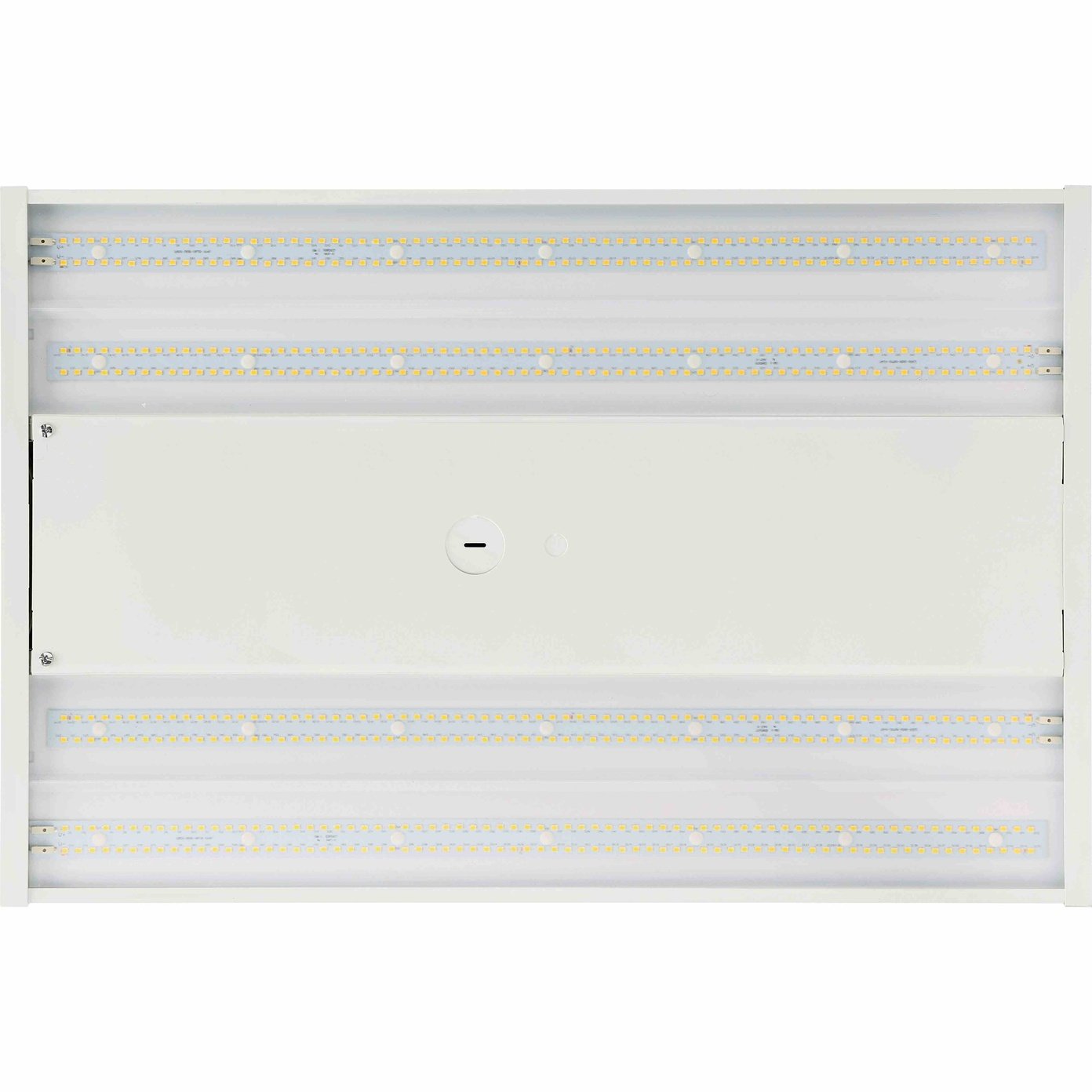

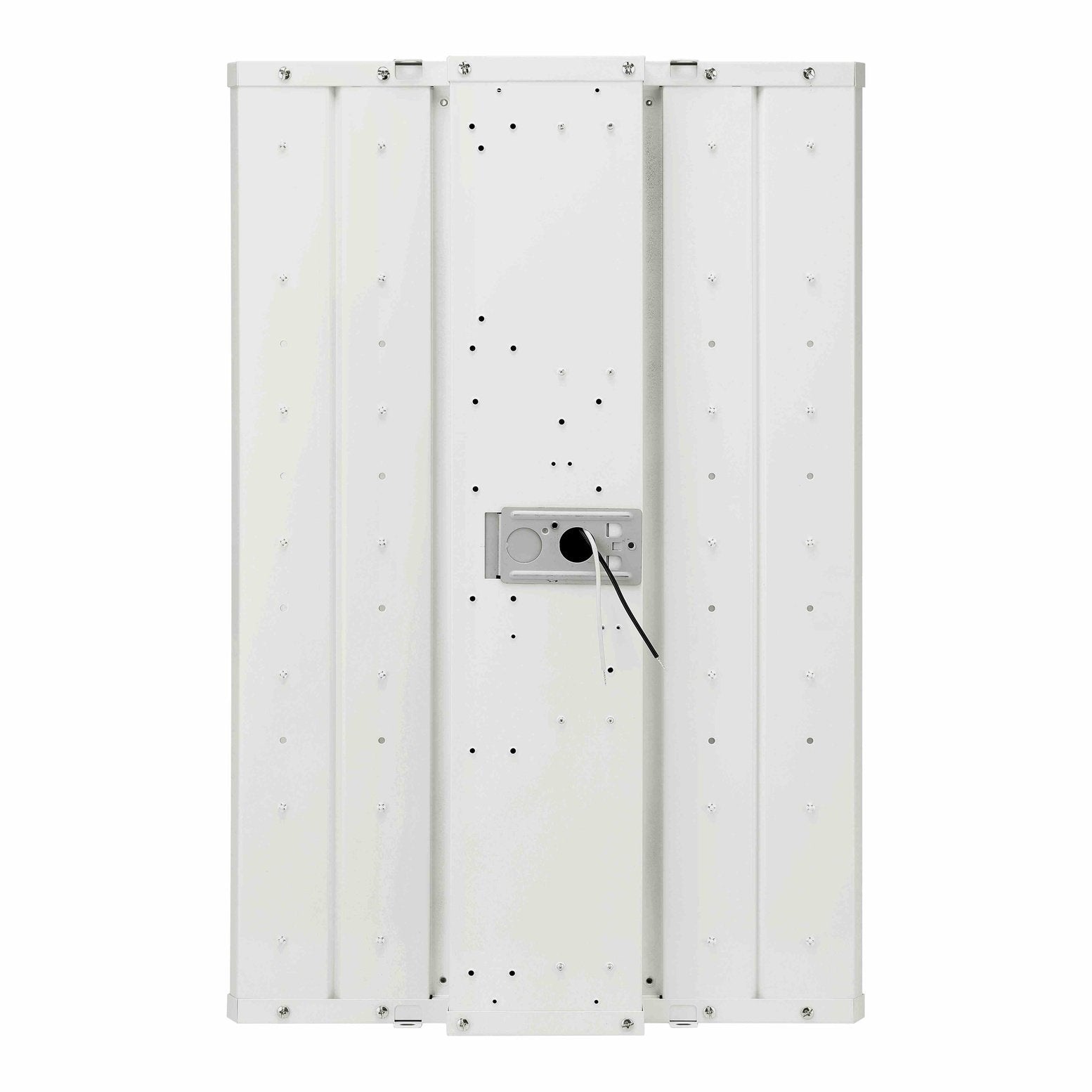

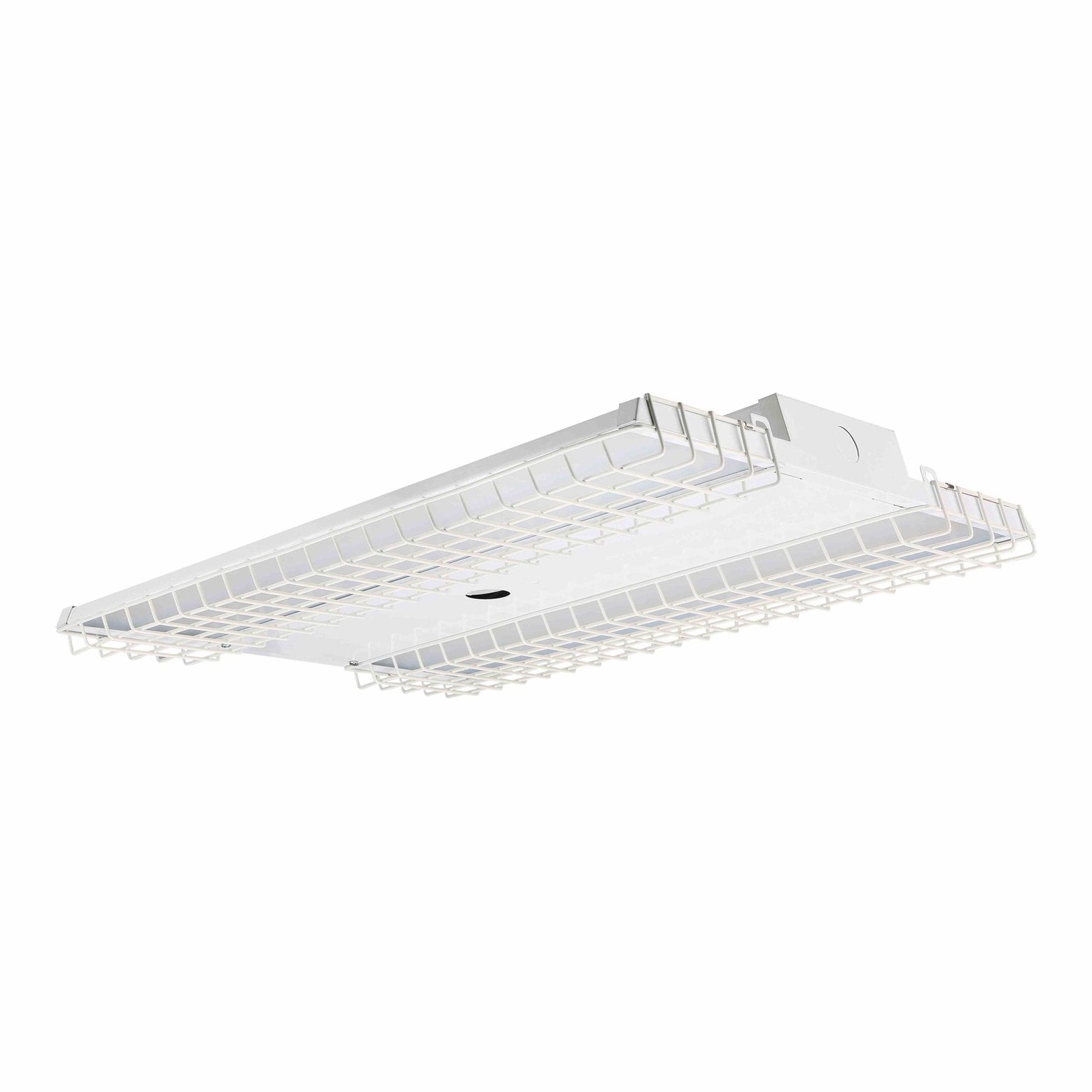

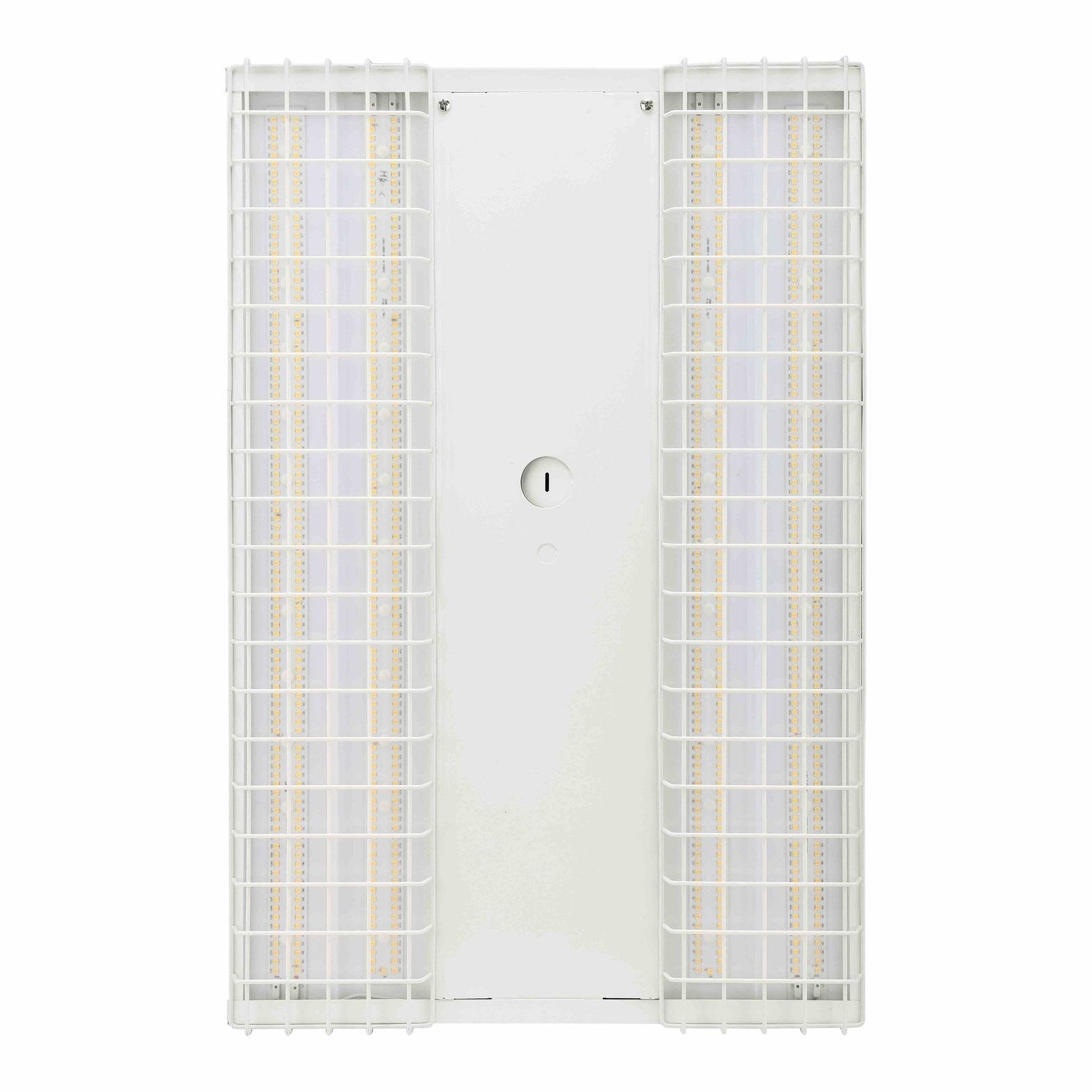

McGregor Lighting Linear LED High Bay Light 18500 Lumens, 130W 120-277V - 2-Pack – MLH04130W27V40KCD
LH04 22D Linear LED High Bay Light 18500 Lumens 130W 120-277VAC Dimmable, Ra80, 4000K or 5000K, Clear diffuser, White (2 Pack). Replaces 4-Lamp T5HO 54W. 130-watt LED linear high bay (2-Pack) with 18,500 delivered lumens. 4000K-5000K, white, DLC Premium and UL listed for damp locations. 5-year limited warranty.
- Applications: Commercial, Retail, Storage Facilities, Warehouses, Industrial
- Replaces 4 x F54T5HO
- Wattage: 130 Watts
- Lumens: 18,500
- Input Voltage: Universal (120V through 277V Operation) Dimmable Driver
- 1-10V dimming driver(s) as default.
- THD: ≤20%, Power Factor: ≥90%.

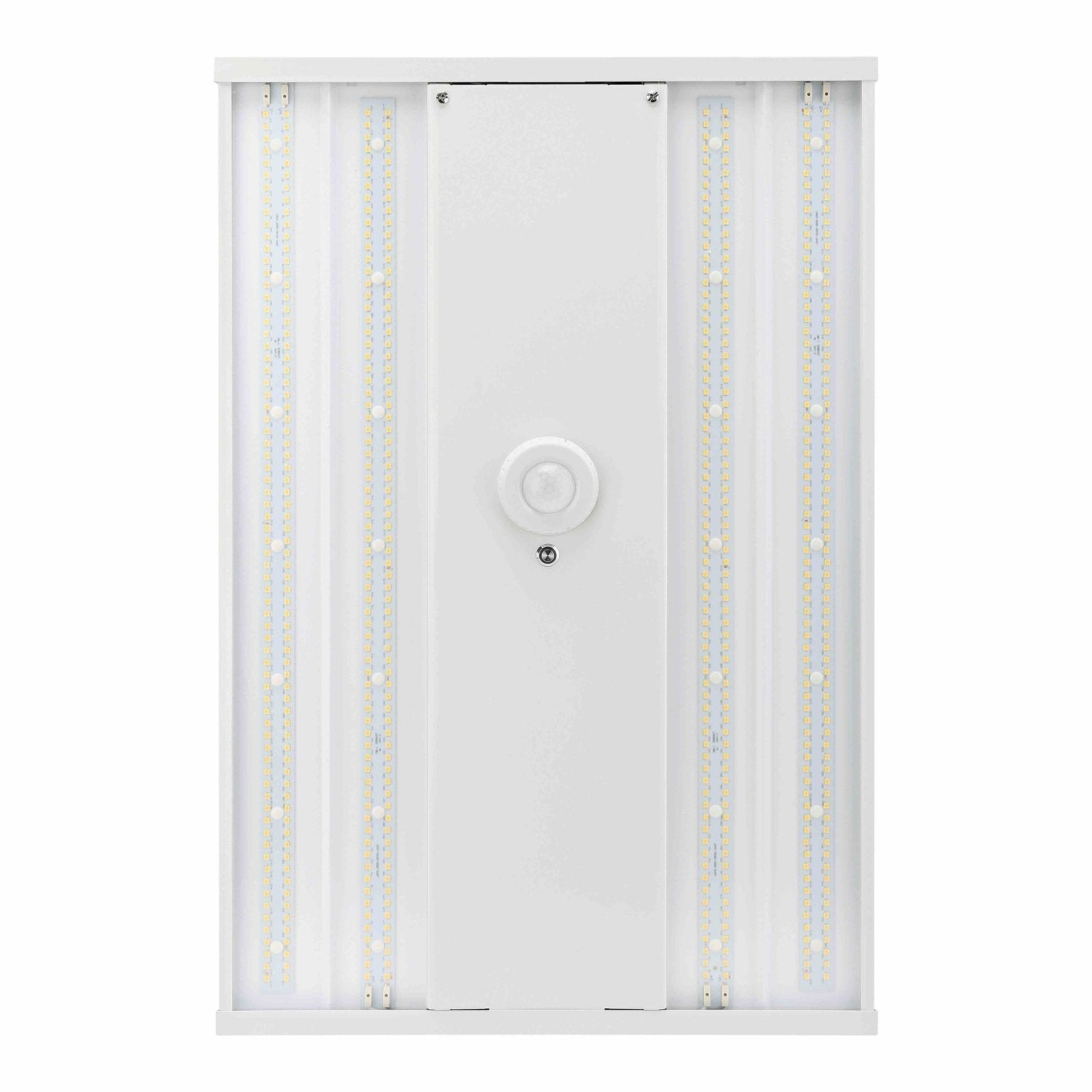

- Optional multi-level motion sensor - BRI823
- Optional emergency battery backup provides up to 90 minutes of operation during outages.
- Standard 6KV surge protection, meeting the industrial ANSI standards.
- Dimensions: 23.62" L x 15.75" W x 1.75" H
- Lifespan: Estimated >50,000 hours of maintenance-free operation based on IES LM-80 results and TM-21 calculations
- Mounting: Chain mount with steel wire rope included
- Mounting Height: 15-25 Feet
- Operating Temperature: -40°F (-40°C)
- Max Operating Temperature: 131°F (55°C)
- Certifications: UL Listed, DLC Premium, Damp Locations
- CRI: ≥ 80 CRI
- Housing: Rugged cold-rolled steel housing White, rust-resistant powder coat finish
- Lens Material: Polycarbonate
