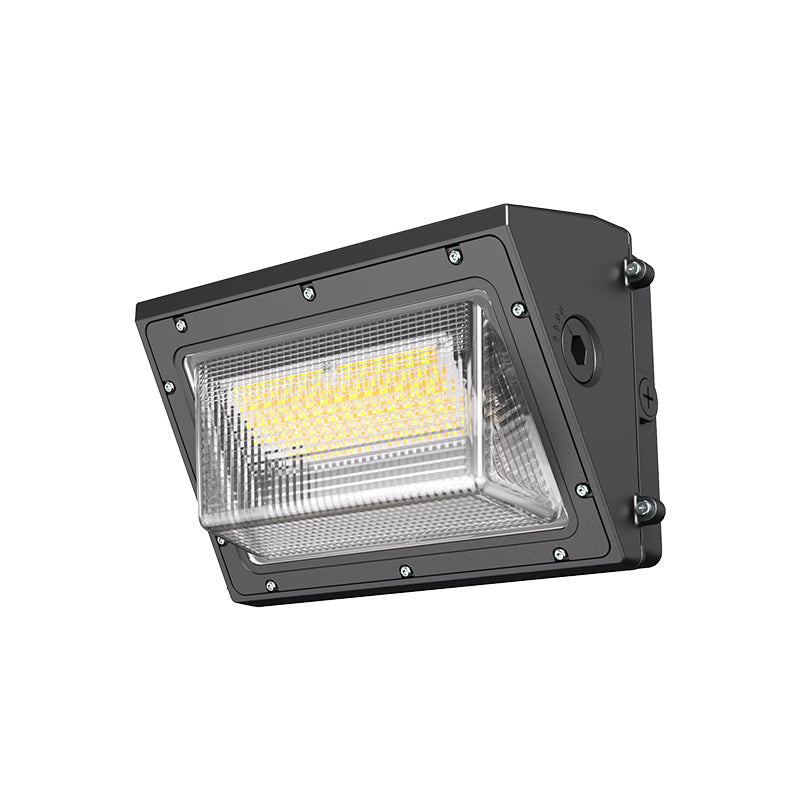

A field-adjustable upgrade – allows field adjustment of Light throw, CCTs and Light output MWP17 series, a more flexible and powerful wall pack, Delivers superior performance in a traditional appearance while maximizing flexibility on field and distributor shelves. MWP17 uses high-quality borosilicate glass lenses combined with a high-efficiency light engine to provide high-quality lighting services. Available in 3 different sizes, it can meet the different lighting needs of customers and perfectly cover the ugly stains left by typical metal halides. Features & Benefits: UV stabilized polycarbonate and glass are both available for the optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K,4000K, 5000K. 4 Optics Adjustable (0°/15°/30°/45°) Universal 120-277VAC or 347-480VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming Emergency Battery option. Operating perature is -40′℃ to 40′C

Series Specifications

Series No.	MWP17
Voltage	120-277 VAC
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	30W, 60W, 100W, 150W
Light Output	4500lm, 8900lm, 14000lm, 22000lm
UL listing	Wet location
Operating Temperature	-40°C to 40°C ( -40°F to 104°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box or Wall mount
Accessory	Photocell - Button (Optional), Emergency Battery Backup，PIR Sensor，Bluetooth PIR Sensor
30W	12x7.7x7.1in
60W/100W	14.2x9.3x8.1in
150W	18x9.75x9.27in

Ordering Matrix

McGregor Model	Catalog Data
MWP1730W27VDDKDAD	3000K/4000K/5000K Max 30W Max 4,500 lm 150 lm/W 175W MH WM15W27V50KD 5000K 15W 1,750 lm 117 lm/W 100W Incandescent Clear Lens
MWP1760W27VDDKDAD	3000K/4000K/5000K Max 60W Max 8,900 lm 148 lm/W 250W MH Bluetooth PIR Sensor WM17W27V50KD 5000K 17W 1,950 lm 115 lm/W 120W Incandescent Clear Lens
MWP17100W27VDDKDAD	3000K/4000K/5000K Max 100W Max 14,000 lm 140 lm/W 250W MH Plug-in Bluetooth PIR sensor WM25W27V50KD 5000K 25W 2,600 lm 104 lm/W 50W MH Clear Lens
MWP17150W27VDDKDAD	3000K/4000K/5000K Max 150W Max 22,000 lm 147 lm/W 400W MH Emergency Battery Backup WM15W27V50KDF 5000K 15W 1,820 lm 121 lm/W 100W Incandescent Frosted Lens

Pricing and inventory availability are provided by McGregor Lighting.
