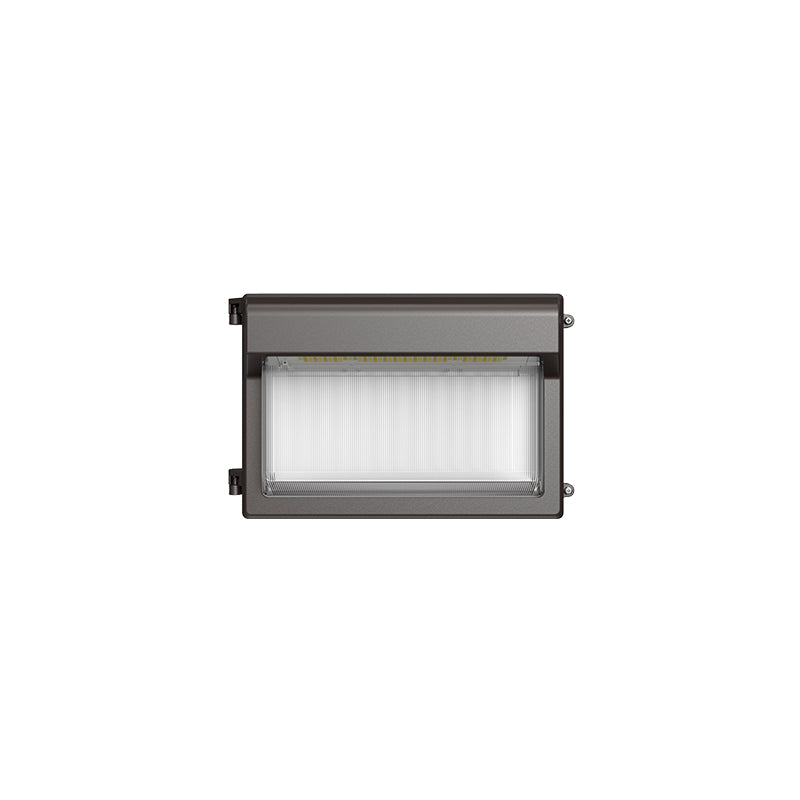

The LED MWP16 series is the wall pack that combines the dimensions of traditional wall packs with modern aesthetics. Its ultra-thin design meets the low-budget requirements of customers while providing excellent lighting service. Its sleek and low-profile appearance seamlessly integrates into various architectural styles, while completely covering the unsightly stains left by typical metal halide wall packs. UV-resistant polycarbonate lenses and durable glass lenses are available options. Additionally, the MWP16 allows on-site adjustment of light output and color temperature, and has multi-functionality such as photocell control and emergency lighting. With its powerful features and long lifespan, the MWP16 is definitely your ideal choice for a wall pack. Features & Benefits: UV stabilized polycarbonate and glass are both available for the optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K,5000K. Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Emergency Battery option. Operating temperature is -40°C to 40°C.

Series Specifications

Series No.	MWP16
Voltage	120-277 VAC
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	60W, 90W, 120W
Light Output	8500lm, 12500lm, 16500lm
UL listing	Wet location
Operating Temperature	-40°C to 40°C ( -40°F to 104°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box or Wall mount
Accessory	Photocell - Button (Optional), Emergency Battery Backup
60W/90W	14.2x9.25x4.43in
120W	18x9.75x4.5in

Ordering Matrix

McGregor Model	Catalog Data
MWP1640W27VDDKDAD	3000K/4000K/5000K Max 40W Max 5,800 lm 145 lm/W 175W MH USE: The wattage and CCT can be
MWP1660W27VDDKDAD	3000K/4000K/5000K Max 60W Max 8,500 lm 142 lm/W 250W MH on the controller.
MWP1690W27VDDKDAD	3000K/4000K/5000K Max 90W Max 12,500 lm 139 lm/W 250W MH
MWP16120W27VDDKDAD	3000K/4000K/5000K Max 120W Max 16,500 lm 138 lm/W 400W MH

Pricing and inventory availability are provided by McGregor Lighting.
