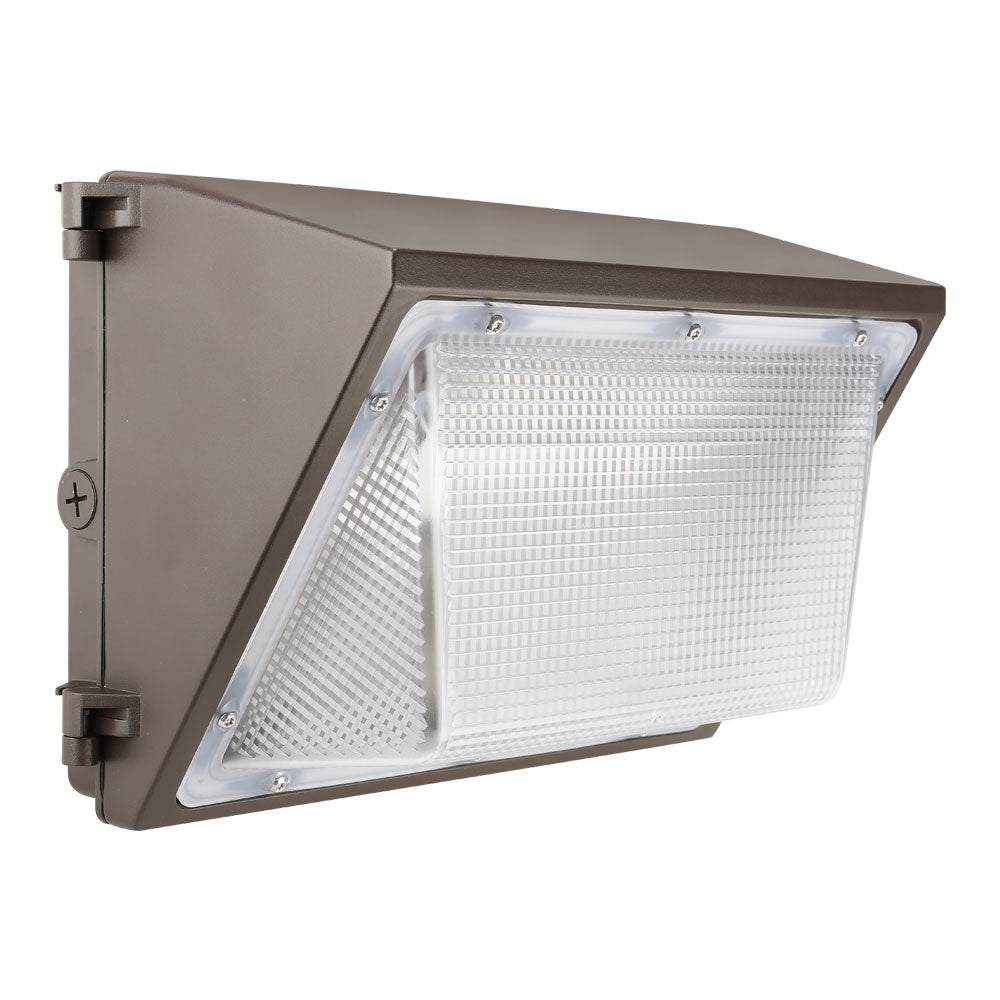

The MWP08 efficiently deliver lumens and consume less energy than traditional wall pack MH technologies. A traditional non-cutoff design offers best vertical illuminations. This versatile luminaire is ideal for replacing existing MH fixtures. Applications: Security, pathway and perimeter lighting, building entryways and walkways. Features & Benefits: Rugged die-cast housing and UV stabilized polycarbonate optic lens. Four adjustable Wattage levels available for 65W, 100W. 65W,100W optional for Color Temperature adjustable: 3000K, 4000K,5000K Universal 120-277VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming Emergency Battery option. Operating temperature is -40℃ to 40℃.

Series Specifications

Series No.	MWP08
Voltage	120-277V/347V-480V VAC
Light Source Type	LED chips
Color Temperature	4000K/5000K
Power	30W, 40W, 65W, 90W, 125W
Light Output	3600 lm, 5100 lm, 7900 lm, 10500 lm, 15000 lm
UL listing	UL-CA-L359489-31-51108102-2, UL-CA-L359489-31-91505102-3
Operating Temperature	-40°C to 40°C （-40°F to 104°F）
Lifespan	50,000 hours
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box or Wall mount
Accessory	Photocell - Button, Emergency Battery Backup (Optional)
30W&40W&65W&90W&125W	14.21x9.25x7.2in

Ordering Matrix

McGregor Model	Catalog Data
MWP0830W27V50KD	5000K 30W 3,500 lm 117 lm/W 100W MH Photocell Photocell
MWP0840W27V50KD	5000K 40W 5,100 lm 127 lm/W 175W MH pre-installed in factory.
MWP0865W27V50KD	5000K 65W 7,900 lm 121 lm/W 250W MH
MWP0890W27V50KD	5000K 90W 10,500 lm 117 lm/W 320W MH
MWP08125W27V50KD	5000K 125W 15,000 lm 120 lm/W 400W MH USE：900lm 90min.
MWP0865W27VDDKD	3000K/4000K/5000K Max 65W Max 9,500 lm 146 lm/W 250W MH
MWP08100W27VDDKD	3000K/4000K/5000K Max 100W Max 14,000 lm 140 lm/W 400W MH

Pricing and inventory availability are provided by McGregor Lighting.
