McGregor Lighting LED Vapor Tight Linear - MVT04

McGregor Lighting

McGregor Lighting LED Vapor Tight Linear - MVT04

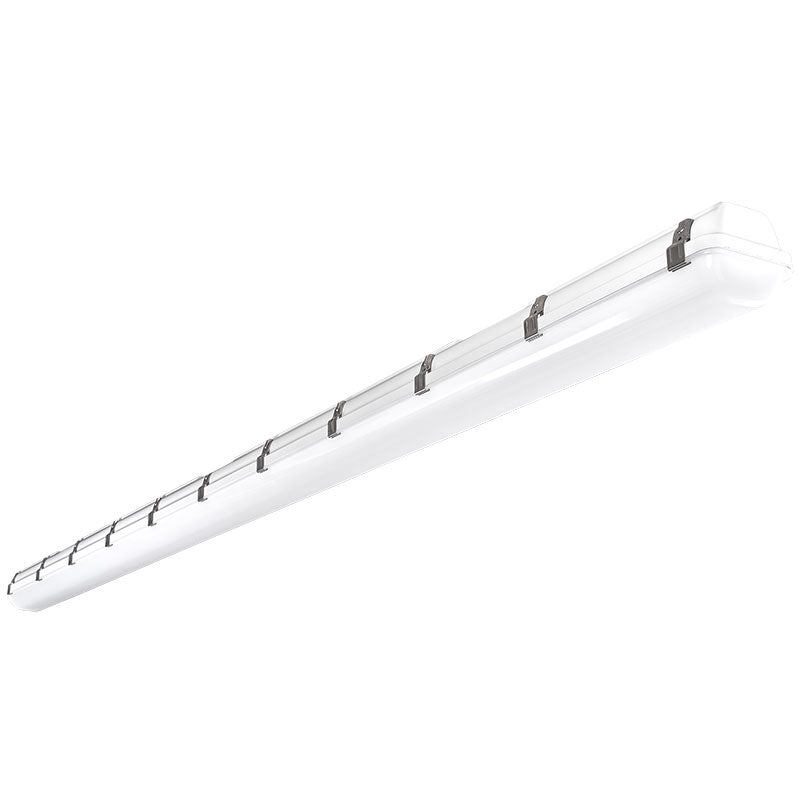

The MVT04 series Vapor Tight fixture withstands rugged environments and is available in 4-foot and 8-foot lengths. The fixture housing is made of clean and pure PC material with excellent stability and durability, and a stainless steel clip for easy disassembly and installation. With the ability to switch lumens and adjust color temperature in one fixture, greatly reducing SKUs. Emergency Battery Back Up and sensor options are availalble. The MVT04 series vapor tight is ideal solutions for outdoor venues, canopies and locker rooms. Features & Benefits: Estimated 100,000 – hour LED lifespan for long – term use. Universal 120 – 277VAC input voltage with 0 – 10V dimming, high PF and low THD. Adjustable lumen output (LV1、LV2、LV3) and switchable color temperature (3500K/4000K/5000K) in one fixture. Closed housing with stainless steel clamp, IP65 & IK08 rating for protection in rugged environments. Five – year limited warranty and UL cUL wet location listed for quality assurance.

Series Specifications

Series No. MVT04
Voltage 120-277 VAC
Dimmable 1-10V dimming
Light Source Type LED chips
Color Temperature 3500K/4000K/5000K
Power 50W, 90W
Light Output 6900 lm, 12500 lm
UL listing Wet location
Operating Temperature -30°C to 50°C
Lifespan 100,000 hours
Warranty 5 year
Application Grocery, Parking structures, Industrial lighting
Mounting Suspension and surface mount option
Accessory Sensor - Screw on, Emergency Battery Backup
50W 47.3x5.0x3.7in
90W Ø94.5inx4.81inx3.7in

Ordering Matrix

McGregor Model Catalog Data
MVT0450W27VDDKG 4’ 3500K/4000K/5000K Max 50W Max 7,200 lm 144 lm/W 175WMH Emergency Battery Backup
MVT0490W27VDDKG 8’ 3500K/4000K/5000K Max 90W Max 13,700 lm 152 lm/W 250W MH

Pricing and inventory availability are provided by McGregor Lighting.

Product Dossier

SKU
Brand
McGregor Lighting
Fixture Type
LED Vapor Tight Linear
Price
$129.00 – $199.00Price range: $129.00 through $199.00
Availability
In stock

FixtureFarm Trade Document

Generate Product Spec Sheet

Create, print, email, or share a branded product sheet with the available fixture information and technical details.

Email Spec Sheet

DESIGNER SPECIFICATION SUITE

Technical details for trade professionals.

SKU
BrandMcGregor Lighting
AvailabilityIn stock
Core product data
Product name
McGregor Lighting LED Vapor Tight Linear - MVT04
Brand
McGregor Lighting
Product type
LED Vapor Tight Linear
Price
$129.00 – $199.00Price range: $129.00 through $199.00
Availability
In stock
Model
MVT0450W27VDDKG | MVT0490W27VDDKG
