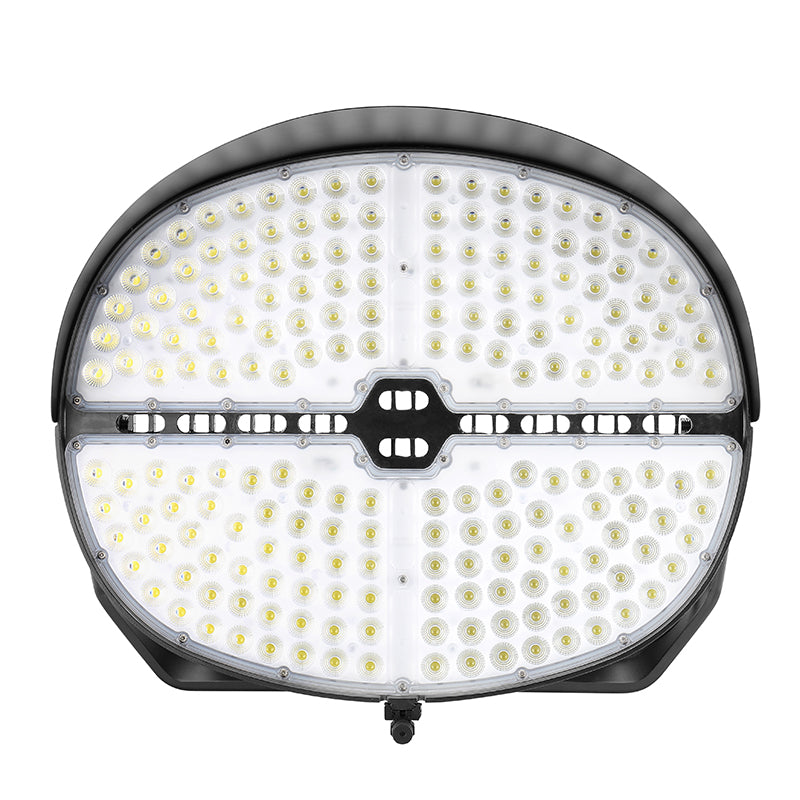

The MESTER MSL03 series is a powerful stadium light designed with Remote Power System.This Remote Power System not only makes the fixture easy to install, greatly improves the flexibility of on-site installation, but also simplifies the driver maintenance operation steps to the greatest extent, eliminating the cost to take the bucket or crane basket equipment for maintenance. Precision engineered optics provide excellent high output and high efficiency, making them ideal solutions for municipal, school and semi-professional outdoor sports lighting. Features & Benefits: Has a Remote Power System for easy installation and simplified driver maintenance. Offers scalable lumen packages from 70,000 to 165,000 Lumens. Features an ultra-wide input voltage (200 – 480VAC or 120 – 277V or 347 – 480V) and 0 – 10V dimming. Comes with a sealed die-casting profile with IP65 protection for outdoor use. Is compatible with the Synapse™ wireless control system for smart lighting control.

Series Specifications

Series No.	MSL03
Voltage	120-277V/347V-480V VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K/5700K
Power	350W, 480W, 505W, 600W, 650W, 850W, 1200W
Light Output	51000 lm, 70000 lm, 84000lm, 91000lm, 118000lm, 160000lm
UL listing	UL-US-L359489-11-41100202-9
IP Rating	IP65
Operating Temperature	-40°C to 45°C （-40°F to 131°F）
Lifespan	100,000-hour
Warranty	5 year
Application	General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports
Mounting	Trunnion
Accessory	Yoke Adaptor (Optional), Aiming Sight
350W/480W/505W/600W	20.8x16.9x26.9in
650W/850W/1200W	23.8x19.7x29.8in

Ordering Matrix

McGregor Model	Catalog Data
MSL03500W27V50KBB44TR	5000K 500W 70,000 lm 140 lm/W
MSL03600W27V50KBB44TR	5000K 600W 92,000 lm 153 lm/W
MSL03850W48V50KBB44TR	5000K 850W 120,000 lm 141 lm/W
MSL03120W48V50KBB44TR	5000K 1200W 165,000 lm 138 lm/W
MSL03480W48V50KBB44TR	Green 480W 8,000 lm

Pricing and inventory availability are provided by McGregor Lighting.
