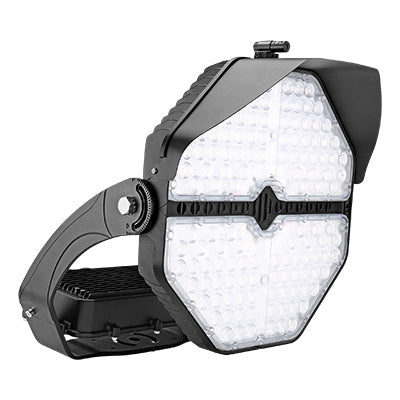

To meet different client’s lighting needs, the new generation of sports light MSL02 series is the culmination of advanced technologies of integrated blindradiator and reflector optics , which provide industry leading glare reductionwith minimal effect on light output. Ideal for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. MSL02 providesversatile lighting for football, baseball, hockey, basketball and any other outdoor sports lighting. Features & Benefits: Scalable Lumen Packages from 50,000 to 68,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 rating for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.

Series Specifications

Series No.	MSL02
Voltage	120-277V/347V-480V VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K/5700K
Power	360W, 510W
Light Output	51000 lm, 68000 lm
UL listing	UL-CA-2118057-1
IP Rating	IP65
Operating Temperature	-40°C to 55°C （-40°F to 131°F）
Lifespan	100,000-hour
Warranty	5 year
Application	General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports
Mounting	Trunnion
Accessory	Yoke Adaptor (Optional), Aiming Sight
350W & 505W & 600W	20.6x16.3x20.2in
500W&600W&650W&850W	23.8x18.5x21.63in

Ordering Matrix

McGregor Model	Catalog Data
MSL02360W27V50KBB44TR	5000K 360W 51,000 lm 142 lm/W Sqaure Beam
MSL02510W27V50KBB44TR	5000K 510W 68,000 lm 133 lm/W (sold separately) (Optional) (Optional)

Pricing and inventory availability are provided by McGregor Lighting.
