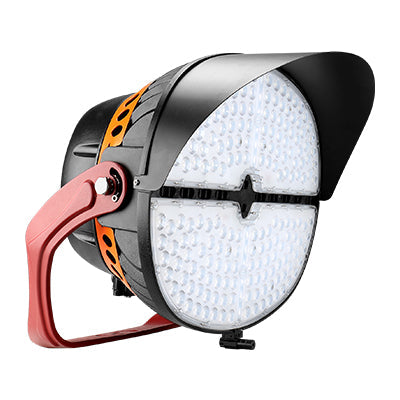

Designed for High School, Collegiate, Recreational and Professional indoor and outdoor sports venues and outdoor stadium lighting. Heavy Duty, lightweight and durable Die-Cast design for high wear resistance withstands harsh, extreme outdoor conditions. The highly efficient and professional LED sports light, with different NEMA distributions, deliver more foot-candles of illumination to exactly where you need. Features & Benefits: Scalable Lumen Packages from 49,500 to 118,000 Lumens. Standard 4000K, 5000K, 5700K (70/80/90 CRI) light engine configurations. Universal 120 – 277VAC or 347 – 480VAC input voltage with 0 – 10V dimming. Sealed die – casting profile with IP65 protection for outdoor use. Estimated 100,000 – hour LED lifespan and DLC Qualified.

Series Specifications

Series No.	MSL01
Voltage	120-277V/277V-480V VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K/5700K
Power	350W, 505W, 600W, 500W, 600W, 650W, 850W
Light Output	51000 lm, 70000 lm, 84000 lm, 71000 lm, 84000 lm, 91000 lm 118000 lm
UL listing	UL-US-L359489-11-41100202-6
IP Rating	IP65
Operating Temperature	-40°C to 55°C （-40°F to 131°F）
Lifespan	100,000-hour
Warranty	10 year
Application	General and security lighting for large areas Port and rail centers, Airport apron, Interior or exterior sports
Mounting	Trunnion
Accessory	Black Top Visor (Default), Yoke Adaptor, Aiming Sight Bluetooth Controller, Glare Control Shield (Optional for large size)
350W & 505W & 600W	20.6x16.3x20.2in
500W&600W&650W&850W	23.8x18.5x21.63in

Ordering Matrix

McGregor Model	Catalog Data
MSL01505W27V50KBB44TR	5000K 505W 72,000 lm 143 lm/W
MSL01E600W27V50KBB44TR	5000K 600W 90,000 lm 150 lm/W
MSL01850W48V50KBB44TR	5000K 850W 120,000 lm 141 lm/W

Pricing and inventory availability are provided by McGregor Lighting.
