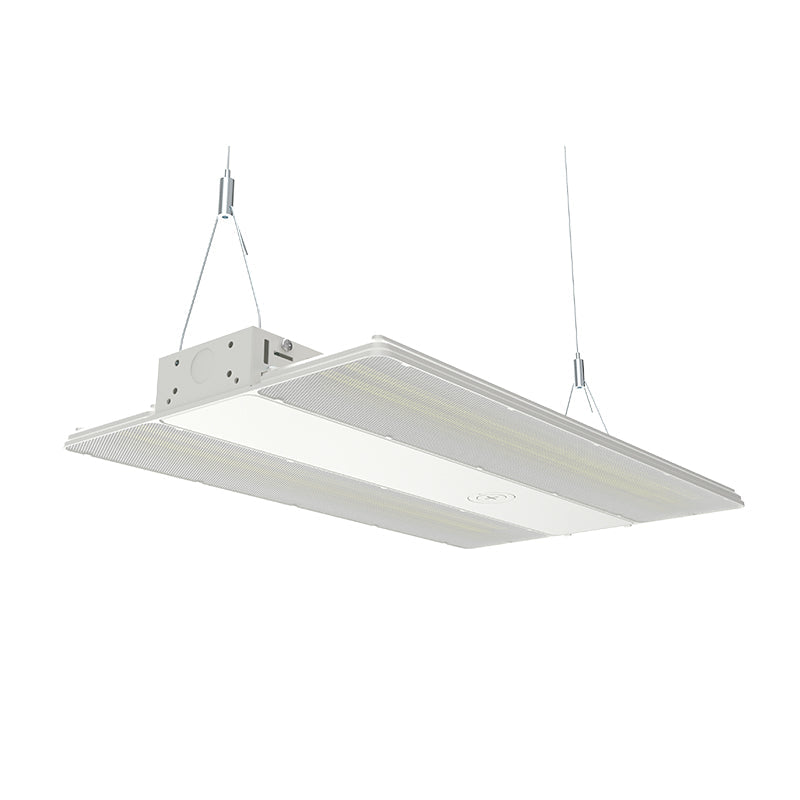

MESTER’s new generation of Linear high bay series MLH07, while ensuring high energy efficiency, excellent light uniformity and long lifespan, aims to reduce the contractor’s budget, making it an ideal choice for retrofit or new project installation. The compact structure design makes the installation of the fixture easier and faster. Each model supports CCT & Wattage Selectable, which improves the flexibility and convenience of on-site installation and significantly reduces stocking SKUs. Features & Benefits: Ultra-Compact, Sturdy Design. Durable die-cast aluminum housing and polycarbonate lens. Available in Prismatic Diffuser, Aisle Optic, Narrow Optic. CRI>80. 6KV surge protection. 0-10V dimming driver standard for 10% to 100% dimming Operating temperature is -40℃ to 50℃.

Series Specifications

Series No.	MLH07
Voltage	120-277VAC or 347-480VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K
Power	80W, 130W, 160W, 205W, 300W, 410W
Light Output	12100 lm, 18500 lm, 24100 lm, 30500 lm, 36100 lm, 42000 lm
UL listing	UL-US-2222785-2
Operating Temperature	-40°C to 50°C ( -40°F to 122°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Office, Warehouse, Commercial lighting
Mounting	Pendant or surface mount
Accessory	PIR Motion Sensor (Optional), Emergency Battery Backup, Steel Wire Rope, Pendant Hanger, Wire Guards
80W & 130W	14.17x9.45x1.65in
160W & 205W	18.11x11.02x1.65in
250W & 300W	26.77x11.02x1.65in
410W	36.22x11.02x1.65in

Ordering Matrix

McGregor Model	Catalog Data
MLH07130W27VDDKWPD	4000K/5000K Max 130W Max 18,500 lm 142 lm/W (4)F54T5, (6)F32T8 or 400W HID USE: Chain mounting.
MLH07160W27VDDKWPD	4000K/5000K Max 160W Max 24,100 lm 151 lm/W (6)F54T5, (8)F32T8
MLH07205W27VDDKWPD	4000K/5000K Max 205W Max 30,500 lm 149 lm/W (8)F54T5, (12)F32T8 Pendant hanger
MLH07250W27VDDKWPD	4000K/5000K Max 250W Max 36,100 lm 144 lm/W (12)F54T5, (18)F32T8
MLH07300W27VDDKWPD	4000K/5000K Max 300W Max 42,000 lm 140 lm/W (18)F54T5, (20)F32T8
MLH07410W27VDDKWPD	4000K/5000K Max 410W Max 60,600 lm 148 lm/W (22)F54T5,(26)F32T8
MLH07130W27VDDKPD	4000K/5000K Max 130W Max 18,500 lm 142 lm/W (4)F54T5, (6)F32T8 or 400W HID USE: Chain mounting. Only suitable for 45W,70W
MLH07160W27VDDKPD	4000K/5000K Max 160W Max 24,100 lm 151 lm/W (6)F54T5, (8)F32T8
MLH07205W27VDDKPD	4000K/5000K Max 205W Max 30,500 lm 149 lm/W (8)F54T5, (12)F32T8 Pendant hanger
MLH07250W27VDDKPD	4000K/5000K Max 250W Max 36,100 lm 144 lm/W (12)F54T5, (18)F32T8 USE: Pendant with 3/4” conduit
MLH07300W27VDDKPD	4000K/5000K Max 300W Max 42,000 lm 140 lm/W (18)F54T5, (20)F32T8
MLH07410W27VDDKPD	4000K/5000K Max 410W Max 61,000 lm 149 lm/W (22)F54T5,(26)F32T8

Pricing and inventory availability are provided by McGregor Lighting.
