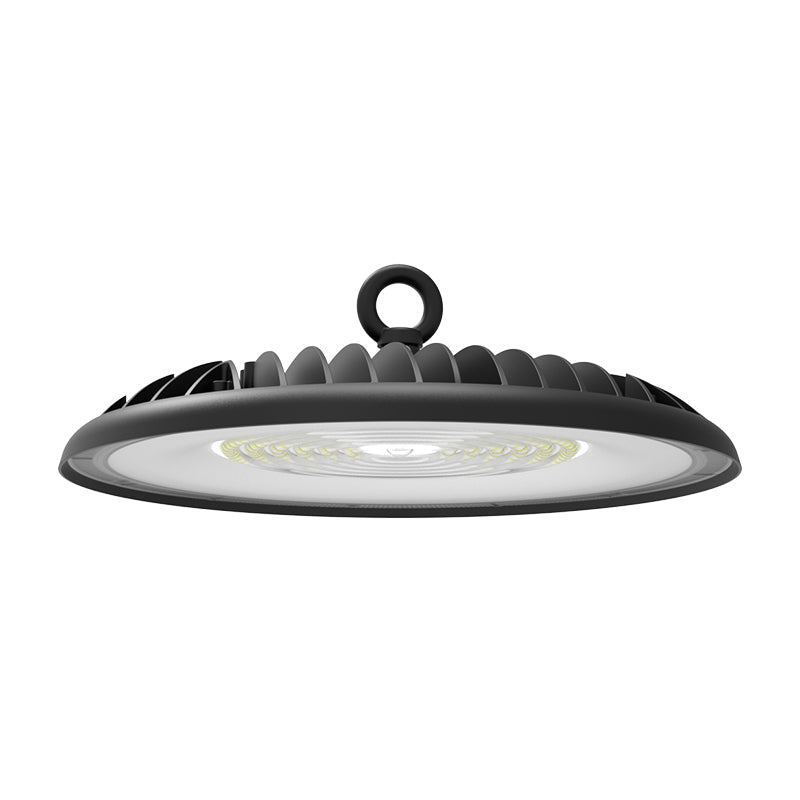

The MHB15 is a circular high bay light fixture designed for a variety of mounting heights and customer applications. The compact design enables faster installation of MHB15 High Bay lighting. There are two sizes and three mounting options: ring mounting, conduit pendant mounting and surface mounting. It is the ideal solution for manufacturing, retail, warehouse and gymnasium applications. Features & Benefits: Scalable lumen packages from 15,300 to 25,000 Lumens for different lighting needs. Standard 3000K, 4000K, 5000K light engine configurations with CRI≥80. Universal 120V or 230V/240VAC input voltage, high power factor and low THD. Three mounting options (hanging ring, conduit pendant, U – bracket mount) for flexible installation. Corrosion – resistant powder coating and anti – UV prismatic translucent lens for protection and optimized lighting.

Series Specifications

Series No.	MHB15
Voltage	120V or 230V/240 VAC
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	150W, 200W, 230W
Light Output	16000 lm, 22000 lm, 25000lm
IP Rating	IP65
Operating Temperature	-40°C to 40°C ( -40°F to 104°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Warehouses, Industrial, Retail
Mounting	Hook mount, Pendant mount and surface mounting
Accessory	Emergency Battery, External PIR sensor, U-Bracket
150W	Ø11.38inx4.13in
200W/230W	Ø13.11inx4.25in

Ordering Matrix

McGregor Model	Catalog Data
MHB15100W12V50KB	5000K 100W 11,000 lm 110 lm/W 250W MH Conduit Adaptor
MHB15150W12V50KB	5000K 150W 16,000 lm 108 lm/W 250W MH
MHB15200W12V50KB	5000K 200W 22,000 lm 110 lm/W 400W MH
MHB15230W12V50KB	5000K 230W 25,000 lm 108 lm/W 400W MH application.
MHB15250W12V50KB	5000K 250W 31,300 lm 125 lm/W 750W MH

Pricing and inventory availability are provided by McGregor Lighting.
