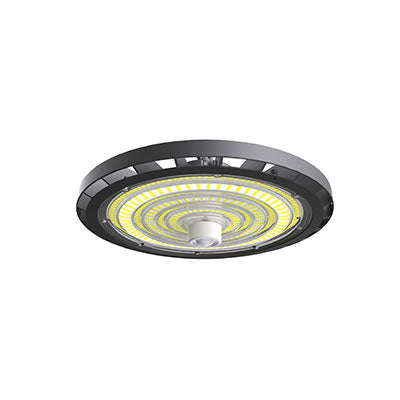

A cost-effective UFO High Bay that fits within your budget, excelling in both performance and aesthetics, while offering strong adaptability to various environments with its exquisite profile. This compact and lightweight fixture is designed for exceptional durability and practicality, capable of replacing a 1000W MH. The MHB13 is an ideal choice for illuminating factories, warehouses, gymnasiums, and other outdoor areas. Features & Benefits： Durable die-cast aluminum housing and polycarbonate lens. Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look. Three adjustable Wattage levels available for each models. Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K). Optics Adjustable (60/90°/120°) 0-10V dimming driver standard for 10% to 100% dimming. 6kV surge protection. Operating temperature is -40°C to 55°C.

Series Specifications

Series No.	MHB14
Voltage	120-277V, 120-347V, 277-480V
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	150W, 200W, 250W
Light Output	24000lm, 31000lm, 40000lm
UL listing	UL-US-2301661-3
Operating Temperature	-40°C to 55°C ( -40°F to 131°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Warehouses, Industrial, Retail
Mounting	Hanging Ring Mount，Conduit Pendant Mount，U-Bracket Mount
Accessory	Emergency Battery, Plug-in PIR sensor, U-Bracket
150W	Ø12.3 in x 6.26 in
200W	Ø14.18 in x 6.28 in
250W	Ø15.5 in x 6.4in

Ordering Matrix

McGregor Model	Catalog Data
MHB14150W27VDDKBAD	3000K/4000K/5000K Max 150W Max 25,000 lm 167 lm/W 250W MH
MHB14200W27VDDKBAD	3000K/4000K/5000K Max 200W Max 34,000 lm 170 lm/W 400W MH
MHB14250W27VDDKBAD	3000K/4000K/5000K Max 250W Max 41,000 lm 164 lm/W 750W MH

Pricing and inventory availability are provided by McGregor Lighting.
