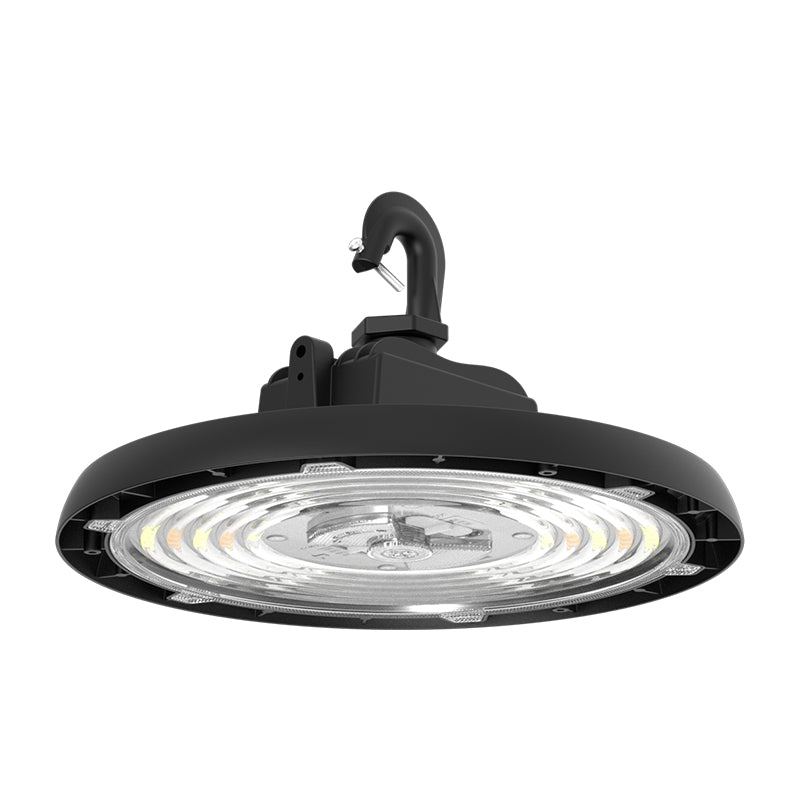

MHB10 continues the compact design concept of its predecessor, MHB08, making full use of LED technology and excellent heat dissipation management. While ensuring product versatility and high quality, MHB10 also reduces budget costs. MHB10 is a rare circular high bay with DIP switches on the surface of the luminaire, supporting on-site adjustment of light output and color temperature without the need for any disassembly. The adjustment can be easily completed by simply flipping the DIP switches, greatly enhancing product flexibility and convenience Features & Benefits: Durable die-cast aluminum housing and polycarbonate lens. Advanced aesthetic design with a screw-free optical lens for a clean and uncluttered look. CRI>80. 0-10V dimming driver standard for 10% to 100% dimming. 6KV surge protection. Operating temperature is -40℃ to 50℃.

Series Specifications

Series No.	MHB10
Voltage	120-277V or 120-347VAC or 347/480V
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	160W, 205W
Light Output	27500 lm, 31000 lm
UL listing	UL-US-2353780-0
IP Rating	IP65
Operating Temperature	-40°C to 50°C ( -40°F to 122°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Warehouses, Industrial, Retail
Mounting	Hook mount, Pendant mount and surface mounting
Accessory	Emergency Battery, External PIR sensor, U-Bracket
160W	Ø11inx7.3in
205W	Ø12inx7.5in

Ordering Matrix

McGregor Model	Catalog Data
MHB10160W27VDDKBAD	3000K/4000K/5000K Max 160W Max 24,500 lm 153 lm/W 250W MH
MHB10205W27VDDKBAD	3000K/4000K/5000K Max 205W Max 31,000 lm 151 lm/W 400W MH

Pricing and inventory availability are provided by McGregor Lighting.
