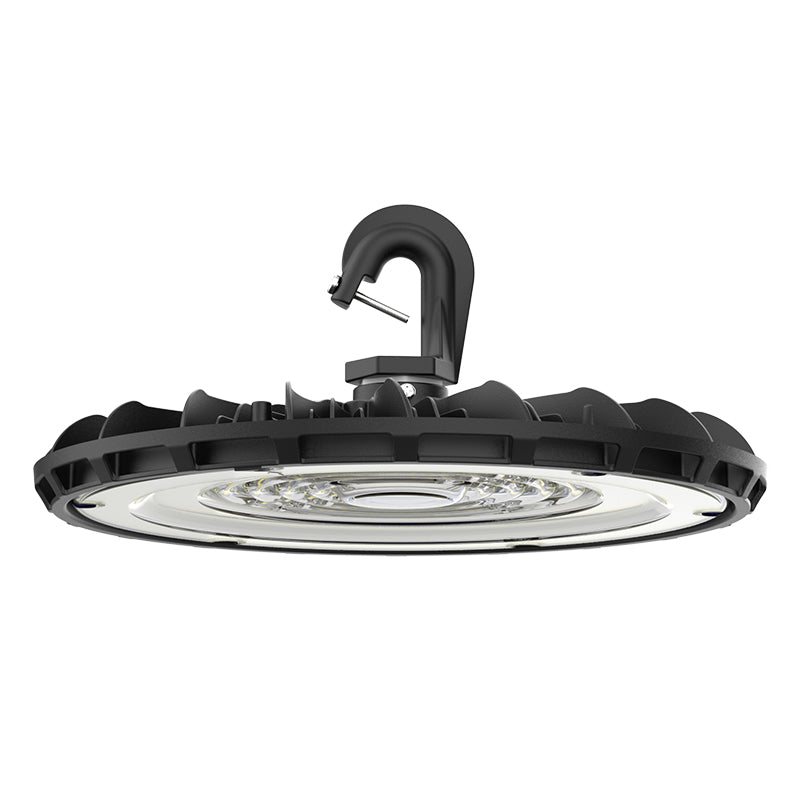

MESTER MHB09 is a budget-friendly product with a high return on investment. The compact and light-weight housing design provides excellent heat management while also supporting three installation methods – hanging, hook, and surface mount. The hanging method does not require additional adapters for installation, making it easy to operate. MHB08′s minimalist and stylish appearance can blend well with various settings without being obtrusive. MHB09 is a versatile high bay suitable for a variety of areas including warehouses, gyms, covered outdoor areas, garden centers, and mezzanines. Features & Benefits: Cast-aluminum housing with corrosion-resistant powder coating for optimal heat management and durability. Scalable Lumen Packages from 6,300 to 17,100 Lumens with 3000K/4000K/5000K (80 CRI) options. Universal 120V or 230V/240VAC input voltage with PF >90%, THD <20%, and -40°C to 40°C operation. Three mounting options (hook, conduit pendant, U-bracket) for versatile installation. Three-year warranty and UL cUL wet location certification for reliability.

Series Specifications

Series No.	MHB09
Voltage	120VAC
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	60W, 80W, 100W, 120W, 155W
Light Output	6400 lm, 8500 lm, 11000 lm, 13000 lm, 17400 lm
UL listing	UL-CA-2314271-0
Operating Temperature	-40°C to 40°C ( -40°F to 104°F )
Lifespan	50,000 hours
Warranty	3 year
Application	Warehouses, Industrial, Retail
Mounting	Hook mount, Pendant mount and surface mounting
60W ＆ 80W	Ø8.268inx4.527in
100W ＆ 120W	Ø9.802inx4.520in
155W	Ø11.417inx4.520in

Ordering Matrix

McGregor Model	Catalog Data
MHB0960W12V50KB	5000K 60W 6,400 lm 107 lm/W 175W MH
MHB0980W12V50KB	5000K 80W 8,500 lm 106 lm/W 175W MH
MHB09100W12V50KB	5000K 100W 11,000 lm 110 lm/W 175W MH
MHB09120W12V50KB	5000K 120W 13,000 lm 108 lm/W 250W MH
MHB09155W12V50KB	5000K 155W 17,400 lm 112 lm/W 250W MH

Pricing and inventory availability are provided by McGregor Lighting.
