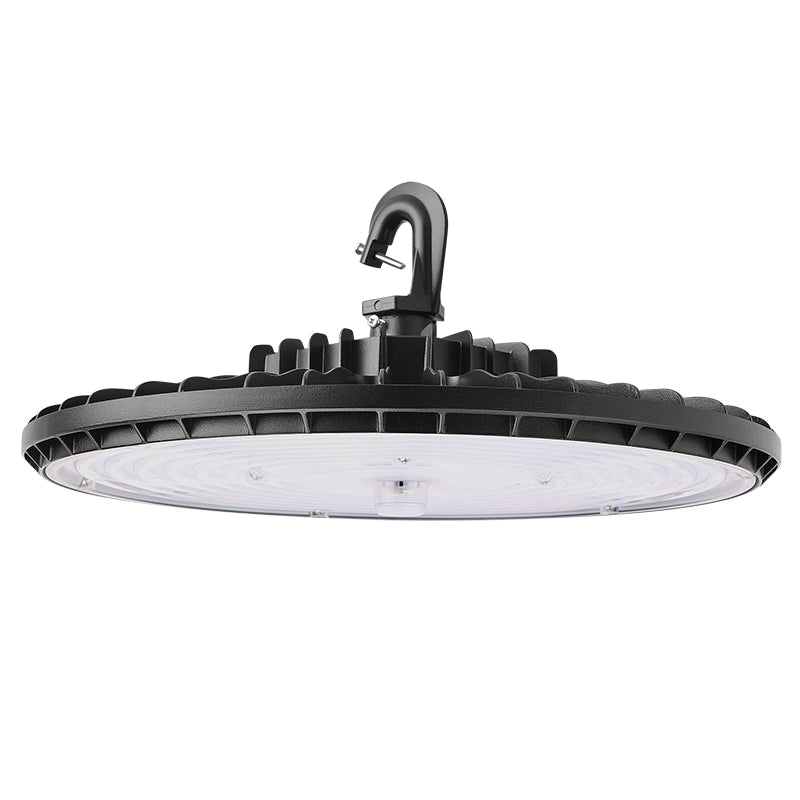

MESTER’s newly released compact High Bay MHB08 will provide you with a new high bay lighting experience: high output, low glare (compliant with DLC premium requirements), and supports multiple installation methods (hook, pendant, surface mounting), making the installation of the luminaire easy, simple, and safe. The 3-second plug-in sensor option provides an unprecedented speed experience for configuration replacement. MHB08′s unique feature – adjustable power and color temperature (power adjustment: 100%, 80%, 60%, 40%; color temperature adjustment: three CCTs adjustments of 3000K, 4000K, 5000K, or two CCTs adjustments of 4000K, 5000K) – will effectively under your budget and reduce inventory pressure. Features & Benefits: Compact High bay, quick and easy to install. 6KV surge protection. Offer 2 selectable CCT (40K/50K), with the option for 3 selectable CCT (30K/40K/50K). Four adjustable Wattage levels available for each model. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40˚C to 50˚C.

Series Specifications

Series No.	MHB08
Voltage	120-277V
Dimmable	0-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	100W, 160W, 210W
Light Output	15000 lm, 25000 lm, 32000 lm
UL listing	UL-US-2301661-3
IP Rating	IP65
Operating Temperature	-40°C to 50°C ( -40°F to 122°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Warehouses, Industrial, Retail
Mounting	Hook mount, Pendant mount and surface mounting
Accessory	Emergency Battery, External PIR sensor, U-Bracket
100W	Ø10.5inx6.2in
160W	Ø11.8inx6.3in
210W	Ø14.1inx6.3in

Ordering Matrix

McGregor Model	Catalog Data
MHB08100W27VDDKBAD	3000K/4000K/5000K Max 100W Max 15,000 lm 150 lm/W 250W MH Max 50˚C
MHB08150W27VDDKBAD	3000K/4000K/5000K Max 150W Max 24,000 lm 160 lm/W 250W MH Max 50˚C
MHB08160W27VDDKBAD	3000K/4000K/5000K Max 160W Max 27000 lm 169 lm/W 250W MH Max 45˚C Emergency Battery
MHB08210W27VDDKBAD	3000K/4000K/5000K Max 210W Max 32,000 lm 152 lm/W 400W MH Max 50˚C 210W&230W&235W: 25W, 3500lm, 90min
MHB08230W27VDDKBAD	3000K/4000K/5000K Max 230W Max 36,000 lm 157 lm/W 750W MH Max 50˚C
MHB08235W27V50KBAD	5000K Max 235W Max 40,000 lm 170 lm/W 750W MH Max 45˚C Use for surface mounting

Pricing and inventory availability are provided by McGregor Lighting.
