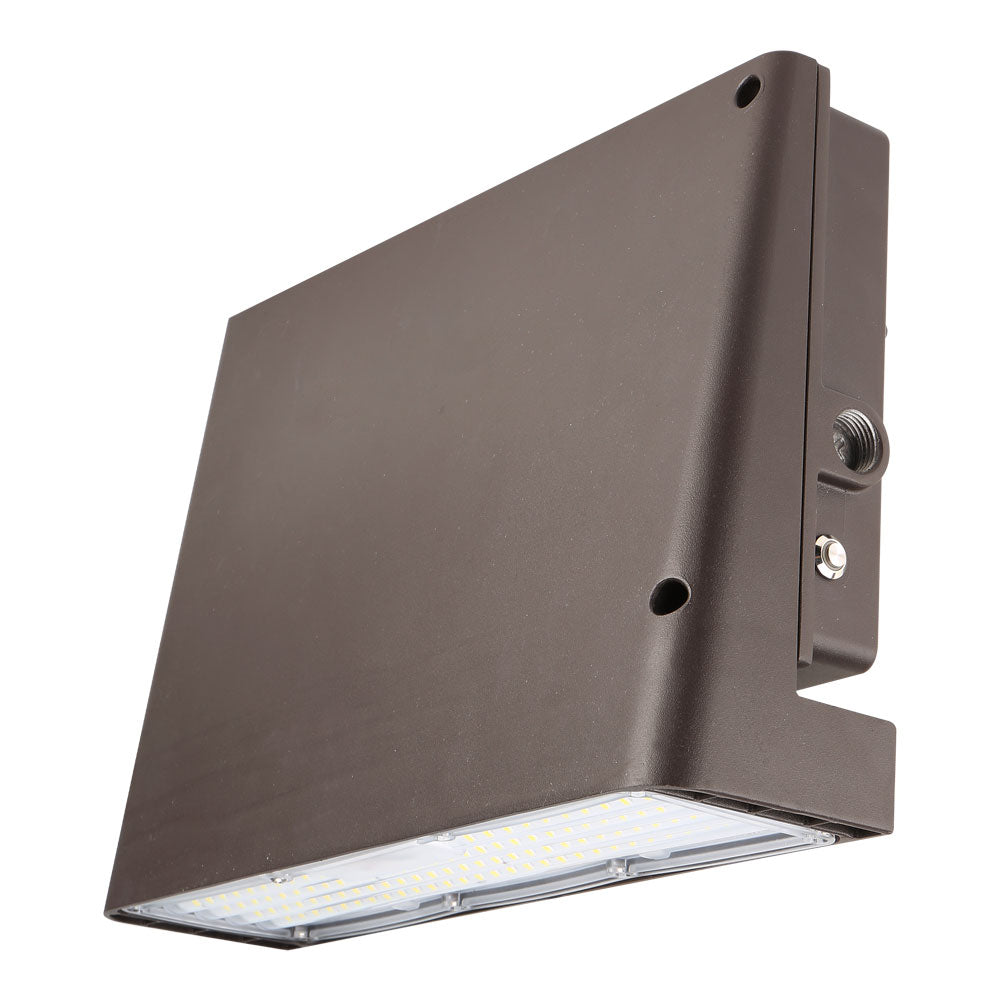

The brand-new WP15 series of LED Wall Pack, available only in one size and the power from 26W to 135W, can replace up to 400W MH. Uniform light distribution and excellent LED lumen maintenance rate, high energy efficiency, low cost, while taking into account the stylish design, ensure that the fixture has a long service life. WP15 also has on-site dimmable output and CCT settings, allowing the contractor to set the lumen value and CCT of the fixture at the installation site to a level that is perfectly suitable for the work site. Emergency egress battery and light control are optional, which is an ideal choice to meet any daily wall-mounted lighting applications. Features & Benefits: Rugged die-cast housing and UV stabilized polycarbonate optic lens. Four adjustable Wattage levels available for each models. Color Temperature adjustable: 3000K, 4000K, 5000K. Universal 120-277V or 347-480VAC input voltage. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40 ℃ to 40℃.

Series Specifications

Series No.	MWP15
Voltage	120-277V/347V-380V VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	26W, 38W, 65W, 100W, 135W
Light Output	4000 lm, 6000 lm, 10000 lm, 15500 lm, 20000 lm
UL listing	UL-US-2158941-2
Operating Temperature	-40°C to 40°C （-40°F to 104°F）
Lifespan	50,000-hour
Warranty	5 year
Application	Pathway, Building entryways, Perimeter lighting
Mounting	Junction box (No need to open driver box)
Accessory	Photocell - Button (Optional), Emergency Battery Backup Power and CCT controller (Optional)
100W	13.1in.x9.6in.x5.0in
26W/38W/65W/135W	13.1in.x9.6in.x3.8in

Ordering Matrix

McGregor Model	Catalog Data
MWP1526W27VDDKD	3000K/4000K/5000K Max 26W Max 4,000 lm 154 lm/W 100W MH Description: External sensor can be
MWP1538W27VDDKD	3000K/4000K/5000K Max 38W Max 6,000 lm 158 lm/W 175W MH or field installed
MWP1565W27VDDKD	3000K/4000K/5000K Max 65W Max 10,000 lm 154 lm/W 250W MH USE: It can be pre-installed in
MWP15100W27VDDKD	3000K/4000K/5000K Max 100W Max 15,500 lm 155 lm/W 250W MH Only suit for 26W, 38W, 65W.
MWP15135W27V40KD	4000K Max 135W Max 20,000 lm 148 lm/W 400W MH Power and CCT controller

Pricing and inventory availability are provided by McGregor Lighting.
