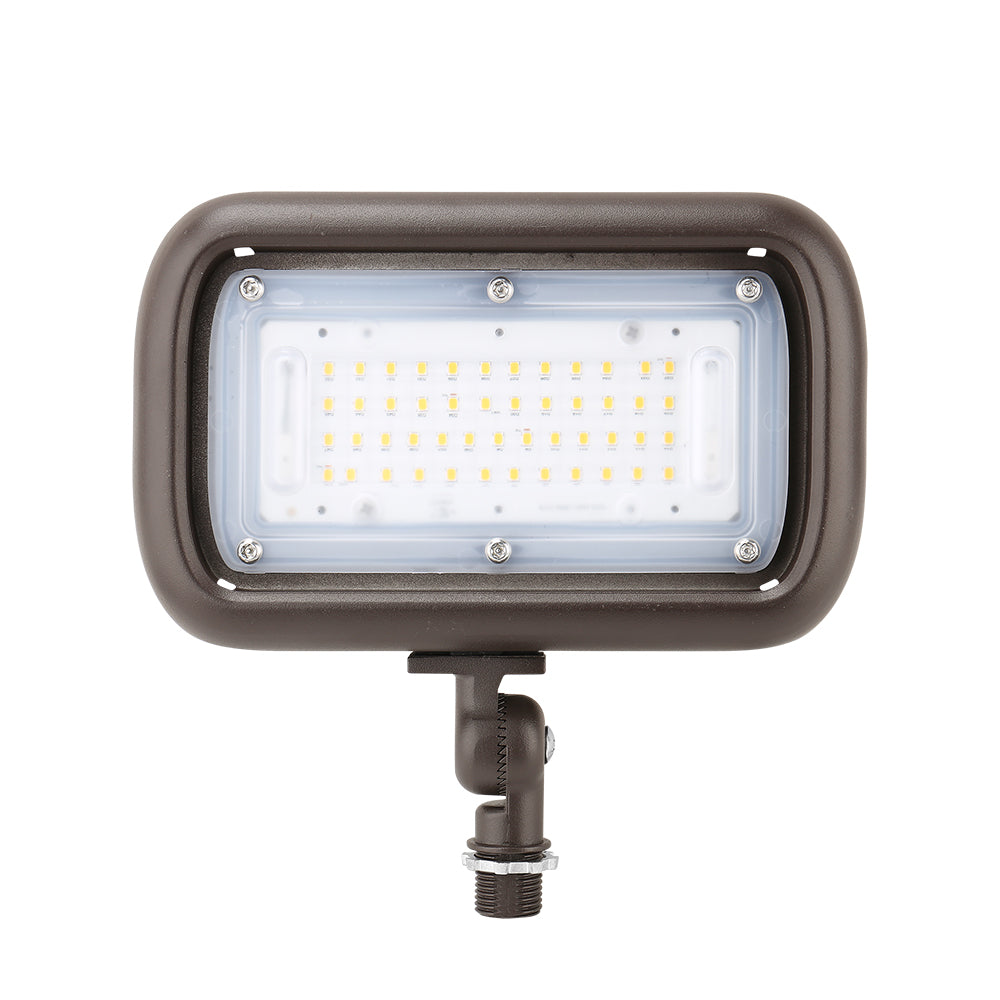

The mini LED floodlight provides energy-efficient small area floodlighting solutions. Wall mount or trunnion mounting plus adjustable knuckle provides mounting flexibility. This powerful LED luminaire is the perfect choice for many floodlighting applications including: walkways, landscape, facade, or small area illumination. Features & Benefits: Full die-cast for designer-quality looks and enhanced life-span and durability. Installation for option: 1/2″ knuckle mount or trunnion mount. Optics(NEMA Type): 7Hx7V. Long life LEDs lasting up to 50,000hours. Operating temperature is -40°C to 45°C.

Series Specifications

Series No.	MFD03
Voltage	120-277 V
Light Source Type	LED chips
Color Temperature	3000K/3500K/4000K/5000K
Power	15W, 16W, 30W, 45W
Light Output	1500 lm, 1600 lm, 3000 lm, 5400 lm
UL listing	Wet location
IP Rating	IP65
Operating Temperature	-40°C to 45 °C ( -40°F～113°F )
Lifespan	50,000 hours
Warranty	5 year
Application	Landscape, Building facades, Commercial lighting
Mounting	Knuckle mount, Trunnion mount or Wall mount
15W	4.72x2.95x1.27in (Knuckle & Trunnion)
16W	5.95x3.3x1.2in (Knuckle & Trunnion)
30W	7.08x4.42x1.61in (Knuckle & Trunnion & Wall mount)
45W	8.26x5.15x2in (Knuckle & Trunnion & Wall mount)

Ordering Matrix

McGregor Model	Catalog Data
MFD0316W12V50KDB76KN	5000K 16W 1,600 lm 100 lm/W 50W MH

Pricing and inventory availability are provided by McGregor Lighting.
