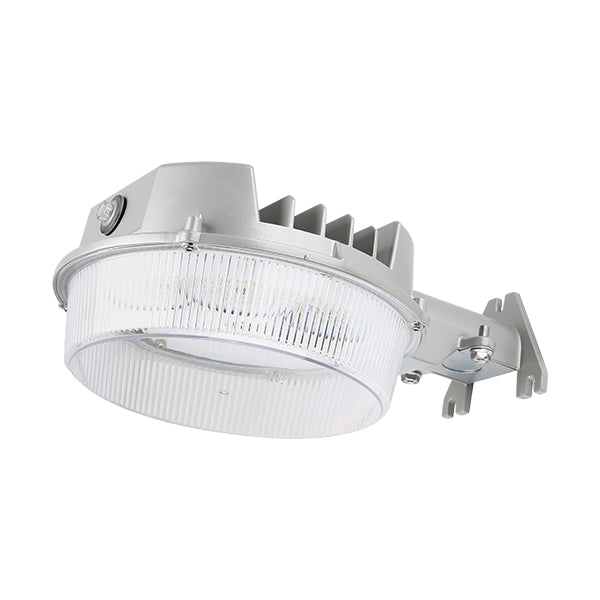

Replace those old “barn lights” with the powerful, energy-efficient Dusk to Dawn LED luminaires that consumes less than 20 watts, providing energy savings of up to 75%. Featuring a classic dayform, the TDD2 LED offers a fresh update to a traditional appearance and is powered by advanced photocell, which makes it ideal for walkways parking lots and warehouses. Features & Benefits: Durable one-piece die-cast aluminum housing and polycarbonate lens. Line voltage(120VAC). Built in Integrated Photocel. 80CRI. Replaces up to 175W MH. Operating temperature is -30℃ to 40℃.

Series Specifications

Series No.	MDD04
Voltage	120V or 120-277V
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	20W, 40W, 60W
Light Output	2100 lm, 4200 lm, 7200 lm
UL listing	E359489
Operating Temperature	-30 ̊C - + 40 ̊C ( -22 ̊F - + 104 ̊F）
Lifespan	50,000 hours
Warranty	3 year
Application	Walkways, Parking lots, Roadways
Mounting	Pole mount or wall mount
Accessory	Mounting arm kit (Optional)
20W & 40W & 60W	10.8x3.7in

Ordering Matrix

McGregor Model	Catalog Data
MDD0420W12V50KSGP1	5000K 20W 2,100 lm 105 lm/W 50W MH
MDD0440W12V50KSGP1	5000K 40W 4,200 lm 105 lm/W 100W MH USE: Photocell is field installed or pre-
