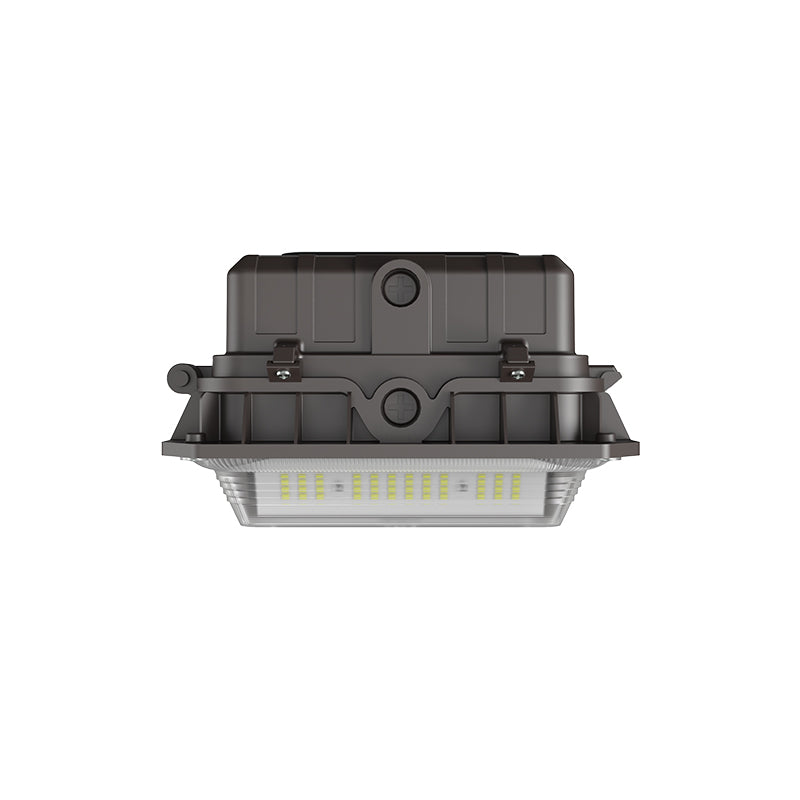

McGregor Lighting MCP08 LED Canopy Light

A compact LED canopy light for parking garages, covered walkways, commercial buildings, retail and educational facilities. The die-cast housing and parking-garage optics deliver comfortable illumination in a low-profile design.

• 120–277V AC input.
• Selectable 3000K, 4000K or 5000K color temperature.
• Four selectable wattage settings per model.
• 0–10V dimming with a 10%–100% dimming range.
• External quick-mount plate for junction-box mounting; compatible with 3/4-inch conduit pendant mounting.
• 1/2-inch knockouts on four sides for surface conduit wiring.
• Optional plug-and-play sensor and emergency battery configurations, sold separately.
• Estimated 50,000-hour LED lifespan and five-year limited warranty.

Model selection

Model	Finish	Selectable wattage	Maximum lumens at 4000K
MCP0840W27VDDKDAD	Dark bronze	40 / 32 / 24 / 16W	6,700
MCP0860W27VDDKDAD	Dark bronze	60 / 48 / 36 / 24W	10,000
MCP0870W27VDDKDAD	Dark bronze	70 / 56 / 42 / 28W	11,600

Dimensions and operating conditions

Standard fixture: 9.2 × 9.2 × 3.3 inches. Operating temperature: −40°C to +40°C (−40°F to +104°F). Emergency-battery configurations have different dimensions and an operating range of +10°C to +40°C (+50°F to +104°F).

Standard models listed above do not include a sensor or emergency battery. The emergency versions of the 40W and 60W models use different 45W and 65W order codes. Confirm the required configuration before ordering accessories. Light output varies by selected wattage and color temperature.
