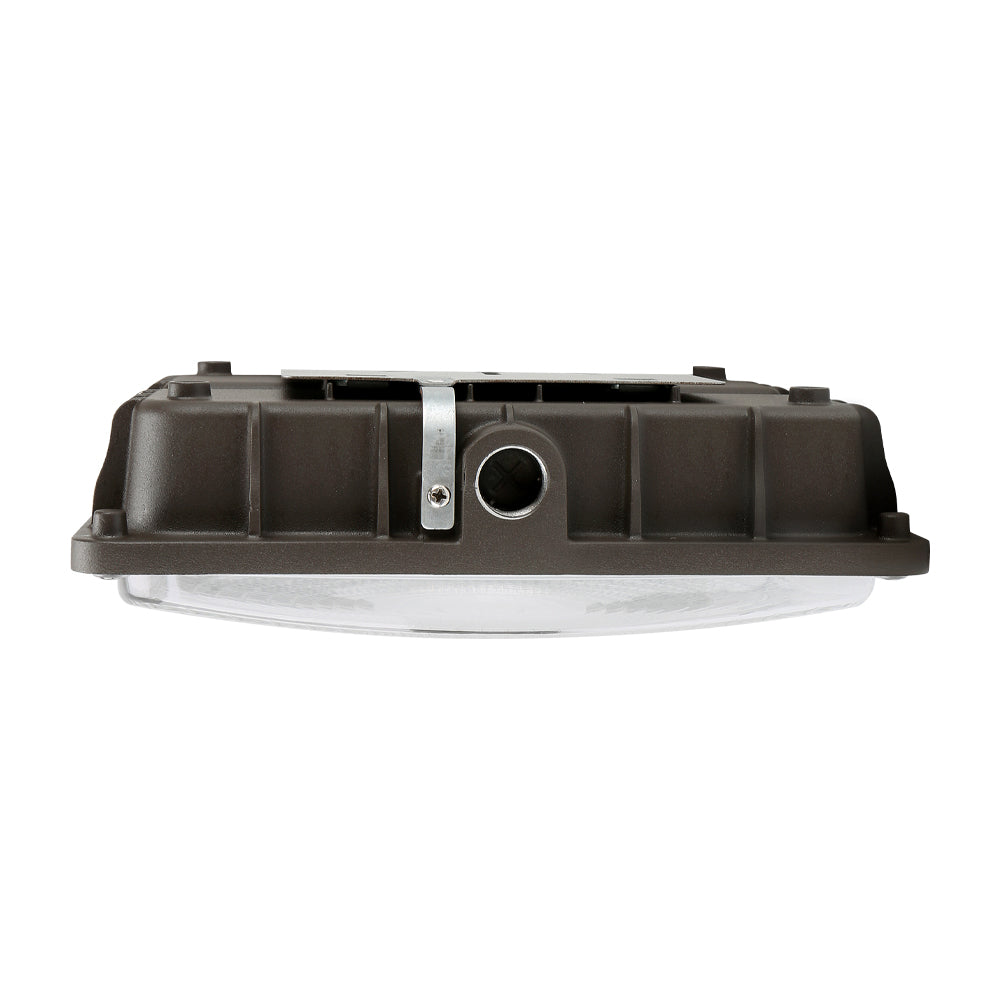

MCP05 is a budget-friendly and energy-efficient fixture suitable for outdoors such as commercial buildings, building entrances, sidewalks and indoorparking lots. The uniquely designed translucent polycarbonate lens creates a comfortable lighting effect. At the same time, it is a fixture with high return on the basis of field regulation of the output lumen value (100%, 80%, 60%, 40%) and CCT (3000K, 4000K, 5000K). The MCP07 is also easy to install and compatible with Motion sensor and emerge battery features. Features & Benefits: Sealed die-casting prole for indoor and outdoor applications. Parking Garage Photometry provides a wide light distribution and greater uniformity. 0-10V dimming driver standard for 10% to 100% dimming. Occupancy sensor option. Emergency Battery option. Operating temperature is -40°C to 40°C.

Series Specifications

Series No.	MCP05
Voltage	120-277VAC or 347-480VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	4000K/5000K
Power	20W, 27W, 40W, 60W
Light Output	2600 lm, 3800 lm, 5450 lm, 8000lm
UL listing	20191010-E359489
IP Rating	IP65
Operating Temperature	-40°C to 45°C（-40°F to 113°F）
Lifespan	50,000 hours
Warranty	5 year
Application	Retail and grocery, Parking structures, Walkways
Mounting	Pendant or surface mount
Accessory	Sensor (Optional), Emergency Box (Optional)
27W & 40W & 60W	9.52x9.52x3.19in

Ordering Matrix

McGregor Model	Catalog Data
MCP0527W27V50KDD	5000K 27W 3,800 lm 141 lm/W 100W MH
MCP0540W27V50KDD	5000K 40W 5,450 lm 136 lm/W 175W MH
MCP0560W27V50KDD	5000K 60W 8,000 lm 133 lm/W 250W MH

Pricing and inventory availability are provided by McGregor Lighting.
