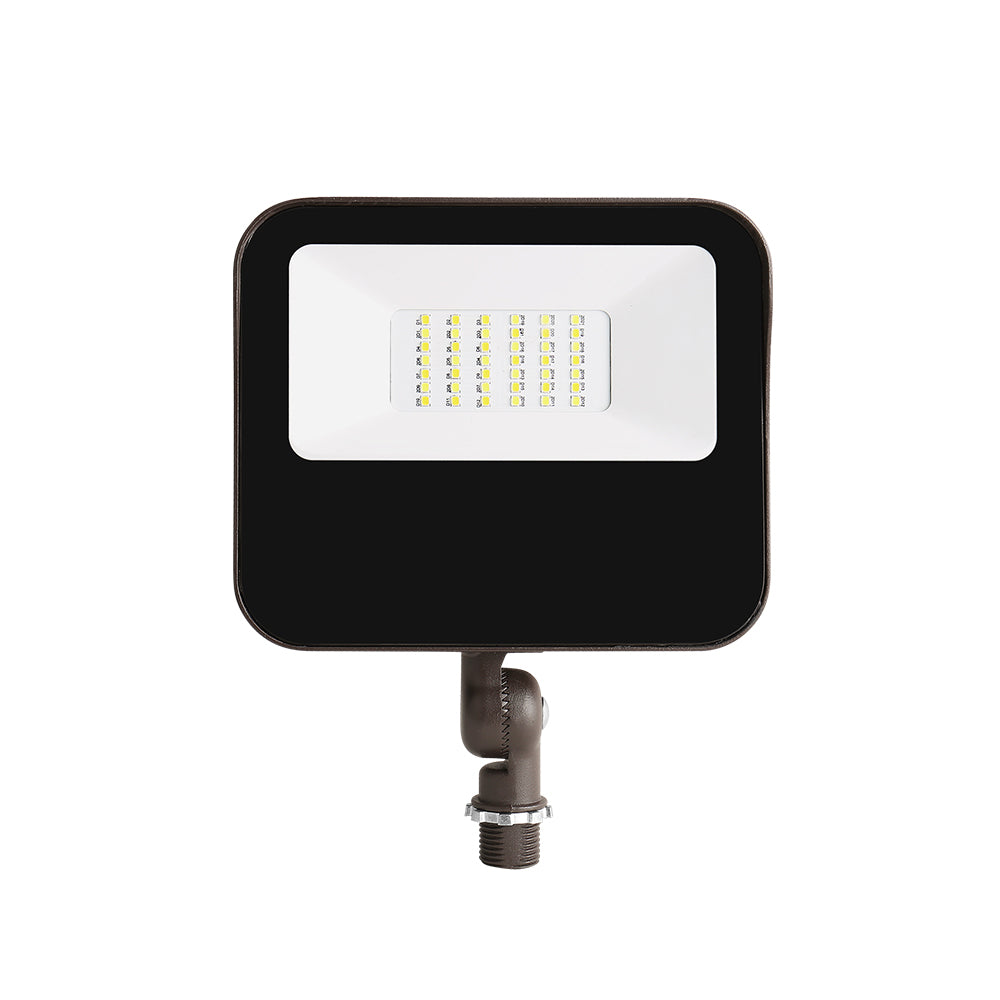

MFD11 aims to provide customers with an economical, efficient, flexible and long-life floodlight. The low-profile and stylish exterior design can be well integrated into various architectural environments. Available in three sizes and multiple lumen packages from 15W-120W, this product also achieve up to 161lm/W efficiency. At the same time, it takes into account the functions of light control, CCT & Power adjustable, which can save energy to the greatest extent and facilitate customer stocking. Reliable IP65 structural design, MFD11 is very suitable for general flood lighting of courtyards, driveways, buildings, billboards, etc. Features & Benefits: Heavy-duty cast aluminum housing and 3G vibration rated. Available in NEMA 7Hx7V. CCT adjustable: 3000K,4000K,5000K. Four adjustable Wattage levels available for each model. Three sizes and Multiple Outputs. 0-10V dimming driver standard for 10% to 100% dimming. Operating temperature is -40℃ to 45℃.

Series Specifications

Series No.	MFD11
Voltage	120-277 VAC
Dimmable	1-10V dimming
Light Source Type	LED chips
Color Temperature	3000K/4000K/5000K
Power	15W, 27W, 40W, 65W, 85W, 120W
Light Output	2300 lm, 3800 lm, 6000 lm, 9700 lm, 14500 lm,19000 lm
UL listing	UL-CA-2149907-2
IP Rating	IP65
Operating Temperature	-40˚C - + 40˚C ( -40˚F - + 104˚F )
Lifespan	50,000 hours
Warranty	5 year
Application	Landscape, Building facades, Commercial lighting
Mounting	1/2" NPS Knuckle, Slipfitter, Trunnion and Yoke
Accessory	Photocell (Optional), Power and CCT controller (Optional)
15W & 27W	6.8x5.8x1.9in
40W & 65W	8.1x7.7x2.1in
90W & 120W	10.4x11.3x3.3in

Ordering Matrix

McGregor Model	Catalog Data
MFD1115W27VDDKDB77	3000K/4000K/5000K Max 15W Max 2,300 lm 153 lm/W 50W MH
MFD1127W27VDDKDB77	3000K/4000K/5000K Max 27W Max 3,800 lm 141 lm/W 100W MH USE: The wattage and CCT can be
MFD1140W27VDDKDB77	3000K/4000K/5000K Max 40W Max 6,000 lm 150 lm/W 175W MH on the controller.
MFD1165W27VDDKDB77	3000K/4000K/5000K Max 65W Max 9,700 lm 149 lm/W 250W MH
MFD1190W27VDDKDB77	3000K/4000K/5000K Max 90W Max 14,500 lm 161 lm/W 320W MH
MFD11120W27VDDKDB77	3000K/4000K/5000K Max 120W Max 19,000 lm 158 lm/W 400W MH

Pricing and inventory availability are provided by McGregor Lighting.
