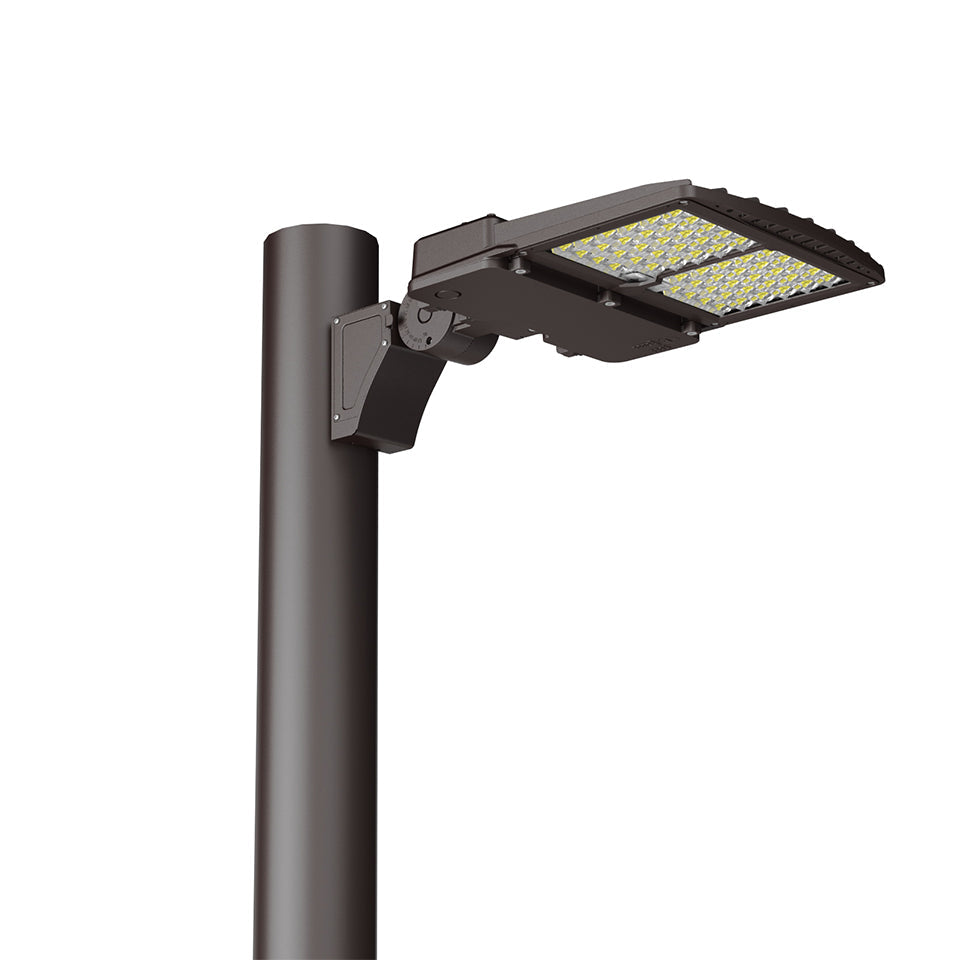

McGregor Lighting Area & Site - MAL09

Utilizing the latest LED technology, the MAL09 delivers high performance, high efficiency and long life while meeting the needs of low-budget customers.The MAL09 retains the common NEMA photocell and sensor functionality, while also supporting adjustable power and color temperature (power adjustments: 100%, 80%, 60%, 40%); (color temperature adjustments: 3000K, 4000K, 5000K). which helps to reduce customers’ inventory pressure. Features & Benefits: Durable one-piece die-cast aluminum housing and polycarbonate lens. Color Temperature adjustable: 3000K,4000K,5000K. Available in lES Type lll, IV, V distributions. Four adjustable Wattage levels available for each model. Standard 0-10V dimming driver for 10% to 100% dimming 10KV(@120-277V)or 20KV@347-480V)surge protection. Operating temperature is -40°C to 50°C.

Series Specifications

Series No. MAL09
Voltage 120-277 VAC or 347-480 VAC
Dimmable 0-10V dimming
Light Source Type LED chips
Color Temperature 3000K/4000K/5000K (CCT adjustable)
Power 100W, 160W, 270W, 330W
Light Output 15800 lm, 25,000 lm, 43500 lm, 50000 lm
Operating Temperature -40°C to 50°C ( -40°F to 122°F )
Lifespan 100,000 hours
Warranty 5 year
Application Automobile dealerships, Parking lots, Downtown areas
Mounting Round pole, Square pole, Slipfitter, Wall mount and Yoke mount
Accessory PIR Sensor, Photocell,External Glare Shield
100W/160W (Adjustable Square Mount) 22.6x13x5.4in
100W/160W (Slipfitter Mount) 22.6x13x2.5in
100W/160W (Wall Mount) 18.3x13.1x8in
100W/160W (Pole Mount) 18.3x13.1x8in
100W/160W (Yoke Mount) 19.7x13.1x2.5in
270W/330W (Adjustable Square Mount) 28x13x5.4in
270W/330W (Slipfitter Mount) 28x13x2.5in
270W/330W (Wall Mount) 24x13x8in
270W/330W (Pole Mount) 23.8x13x8in
270W/330W (Yoke Mount) 25.2x13.1x2.5in

Ordering Matrix

McGregor Model Catalog Data
MAL09100W27VDDKDSQT3AD 3000K/4000K/5000K Max 100W Max 15,800 lm 158 lm/W 400W MH
MAL09160W27VDDKDSQT3AD 3000K/4000K/5000K Max 160W Max 25,000 lm 156 lm/W 400W MH Photocell - 120V-277V
MAL09270W27VDDKDSQT3AD 3000K/4000K/5000K Max 270W Max 43,500 lm 161 lm/W 750W MH USE: Photocell is field installed
MAL09330W27VDDKDSQT3AD 3000K/4000K/5000K Max 330W Max 50,000 lm 155 lm/W 1000W MH
MAL09180W27VDDKDSQT3AD 3000K/4000K/5000K Max 180W Max 28,872 lm 160 lm/W 400W MH
MAL09250W27VDDKDSQT3AD 3000K/4000K/5000K Max 250W Max 40,475 lm 162 lm/W 750W MH USE: 3 seconds plug-in 12-24VDC input
