McGregor Lighting

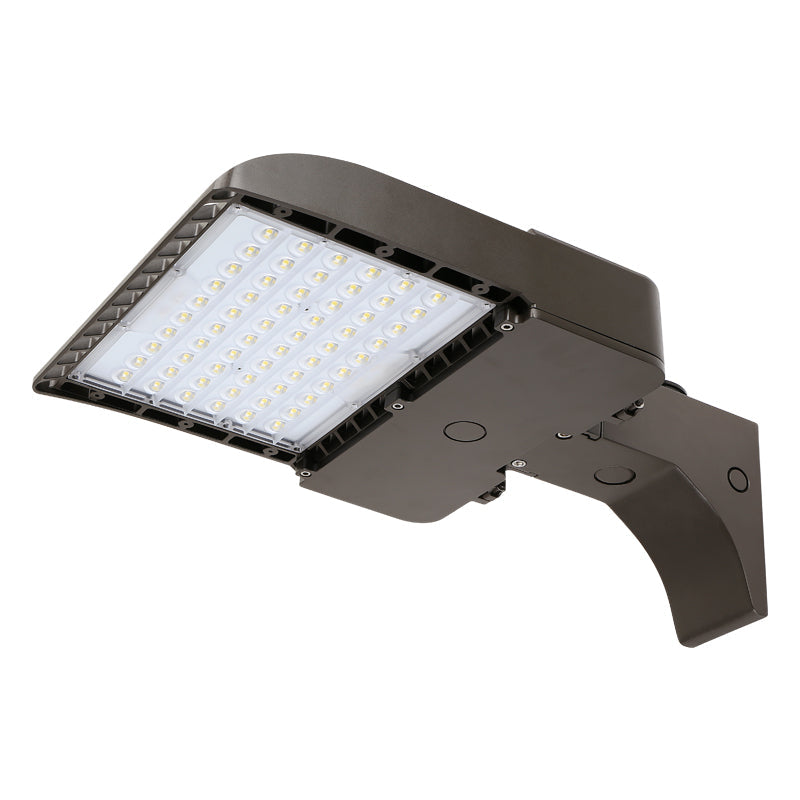

McGregor Lighting Area & Site - MAL06

MAL06 series utilizes the latest advancements in solid-state lighting to deliver a maximum level of output with minimal energy consumption for a modern outdoor lighting solution. It is available with a wide choice of different LED wattage configurations and optical distributions designed to replace MH lighting up to 1000W MH. Multiple different mounting options allow for application in a wide variety of new and existing installations. Features & Benefits: Durable one-piece die-cast aluminum housing and polycarbonate lens. Available in lES Type lll, IV,V distributions 10KV(@120-277V)or 20KV@347-480V) surge protection. Standard 0-10V dimming driver for 10% to 100% dimming. Operating temperature is -40°C to 45°C. Five easy to install installation options available.

Series Specifications

Series No. MAL06
Voltage 120-277 VAC or 347-480 VAC
Dimmable 1-10V dimming
Light Source Type LED chips
Color Temperature 4000K/5000K
Power 100W, 150W, 200W, 240W, 300W, 350W
Light Output 14900 lm, 23150 lm, 29000 lm, 34000 lm, 44000 lm, 52150 lm
UL listing Wet location
Operating Temperature -40 ̊ C to 45 ̊ C (-40°F to 113°F)
Lifespan 100,000-hour
Warranty 10 year
Application Automobile dealerships, Parking lots, Downtown areas
Mounting Round pole, Square pole, Slipfitter and Wall mount
Accessory Sensor (Optional), Photocell (Optional), External Glare Shield External Glare Full Visor (Optional)
100W & 150W & 200W 22.46x13x6.99in
240W & 300W & 350W 31.78x13.4x6.99in

Ordering Matrix

McGregor Model Catalog Data
MAL06100W27V50KDSQT3 5000K 100W 14,200 lm 142 lm/W 250W MH Photocell - 120V-277V
MAL06150W27V50KDSQT3 5000K 150W 21,200 lm 141 lm/W 400W MH USE: Photocell is field installed
MAL06200W27V50KDSQT3 5000K 200W 28,000 lm 140 lm/W 400W MH
MAL06240W27V50KDSQT3 5000K 240W 34,000 lm 142 lm/W 750W MH
MAL06300W27V50KDSQT3 5000K 300W 42,500 lm 142 lm/W 1000W MH
MAL06350W27V50KDSQT3 5000K 350W 50,000 lm 143 lm/W 1000W MH External Glare Full Visor

Pricing and inventory availability are provided by McGregor Lighting.

Product Dossier

SKU
Brand
McGregor Lighting
Fixture Type
Area & Site
Price
$219.00 – $499.00Price range: $219.00 through $499.00
Availability
In stock

FixtureFarm Trade Document

Generate Product Spec Sheet

Create, print, email, or share a branded product sheet with the available fixture information and technical details.

Email Spec Sheet

DESIGNER SPECIFICATION SUITE

Technical details for trade professionals.

SKU
BrandMcGregor Lighting
AvailabilityIn stock
Core product data
Product name
McGregor Lighting Area & Site - MAL06
Brand
McGregor Lighting
Product type
Area & Site
Price
$219.00 – $499.00Price range: $219.00 through $499.00
Availability
In stock
Model
MAL06100W27V50KDSQT3 | MAL06150W27V50KDSQT3 | MAL06200W27V50KDSQT3 | MAL06240W27V50KDSQT3 | MAL06300W27V50KDSQT3 | MAL06350W27V50KDSQT3
