American Lighting
Canvas Sheet 12x24 Tunable White

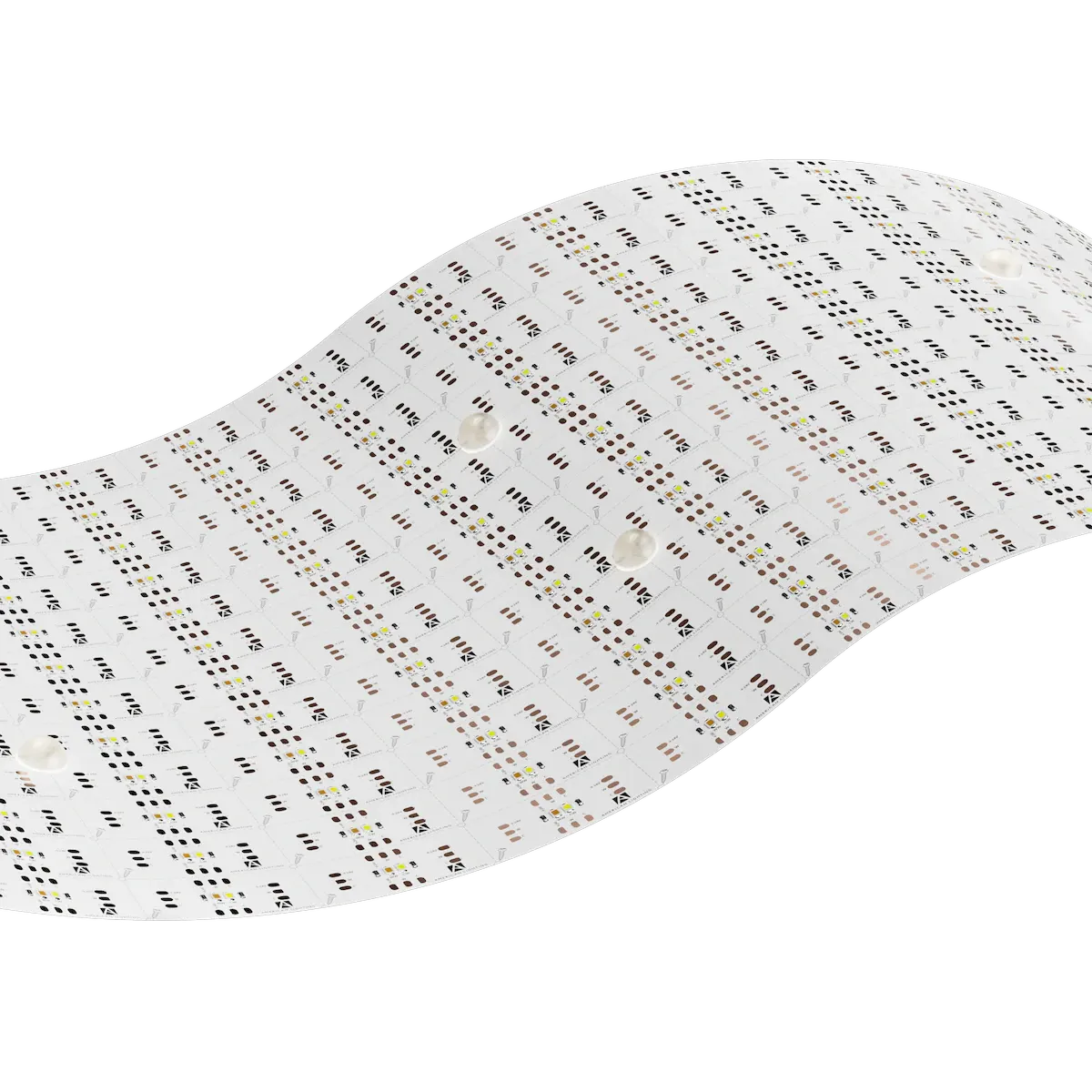

The Trulux Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Tunable CCT 2700K to 6000K Color Tuning
- Ideal for backlighting semi-translucent materials
- Up to 1800Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit
- 2” x 1” Cuttability and LED spacing
- 3M peel and stick backing for quick installation
- Built-in terminal ports make it easy to run power from any side
- Integrated 1/2” stand-offs spaced every 8 inches: Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
- 50,000 hours rated life / 5-year limited warranty
24V DC • 2000Lm • 20W
Manufacturer item number: CNVS-TW-12x24
Product Dossier
- SKU
- CNVS-TW-12x24
- Brand
- American Lighting
- Fixture Type
- Trulux Tape
- Price
- $710.07
- Availability
- Available to order
- Sku
- Cnvs tw 12x24
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
The Trulux Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application. Built-in spacers help lift your material a half-inch off the light sheet for a leveled and diffused effect.
- Tunable CCT 2700K to 6000K Color Tuning
- Ideal for backlighting semi-translucent materials
- Up to 1800Lm output performance per sheet
- Available in 12”H x 24”W sheet size
- Field cuttable on-site for an accurate fit
- 2” x 1” Cuttability and LED spacing
- 3M peel and stick backing for quick installation
- Built-in terminal ports make it easy to run power from any side
- Integrated 1/2” stand-offs spaced every 8 inches: Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
- 50,000 hours rated life / 5-year limited warranty
24V DC • 2000Lm • 20W
Manufacturer item number: CNVS-TW-12x24
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
