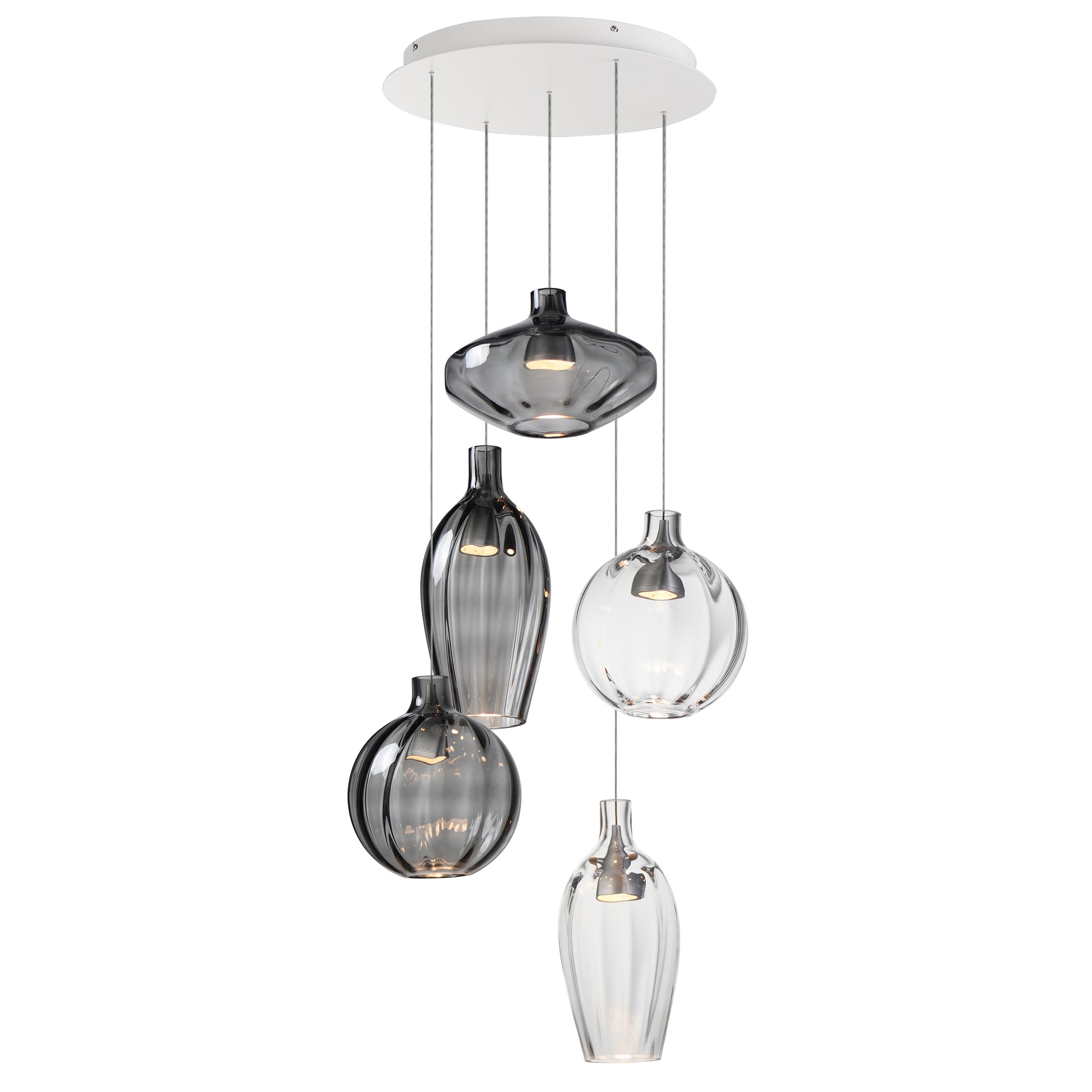

Studio M Ray Dance SM49315MSCL Multi-Light Pendant - Brushed Aluminum
Ray Dance 5-Light LED Multi-Pendant
Product Dossier
- SKU
- SM49315MSCL
- Brand
- Studio M
- Fixture Type
- Multi-Light Pendant
- Price
- $0.00
- Availability
- Available to order
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
SKUSM49315MSCL
UPC783209359949
BrandStudio M
Product TypeMulti-Light Pendant
Price$0.00
AvailabilityAvailable to order
CollectionRay Dance
Product TypeMulti-Light Pendant
FinishBrushed Aluminum
MaterialAluminum,Steel
DimensionsH 12 × W 19 × L 17.25
Safety RatingDry
DesignerSignature
Warranty1
Lamping5 / PCB Integrated
Ray Dance 5-Light LED Multi-Pendant
Trade Resources
Line Drawing →
Specification Sheet →
Line Drawing →
Product Image →
Alternative View 1 →
Alternative View 2 →
Alternative View 3 →
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
Core Product Data
Product NameStudio M Ray Dance SM49315MSCL Multi-Light Pendant - Brushed Aluminum
SKUSM49315MSCL
UPC783209359949
BrandStudio M
Product TypeMulti-Light Pendant
Fixture Pagestudio-m-ray-dance-sm49315mscl-multi-light-pendant-brushed-aluminum
Price$0.00
AvailabilityAvailable to order
Fixture Details
SKUSM49315MSCL
UPC783209359949
PRODUCT_NAMERay Dance-Multi-Light Pendant
THEMERay Dance
SHORT_DESCRay Dance 5-Light LED Multi-Pendant
CATEGORYMulti-Light Pendant
ALTERNATE CATEGORYSingle Pendant
FINISH_IDAL
FINISH_DESCBrushed Aluminum
GLASS_IDMSCL
GLASS_DESCSmoke and Clear
MATERIALAluminum,Steel
SHADE_MATERIALGlass
DESIGNERSignature
WARRANTY1
Dimensions
HEIGHT12
LENGTH17.25
WIDTH19
PROD_OA_HEIGHT135
PROD_OA_MIN_HEIGHT15
CANOPY_LENGTH15.75
CANOPY_HEIGHT1.5
CANOPY_WIDTH15.75
SHADE_TOP0
SHADE_BOTTOM0
WIRE_LENGTH120
Lighting & Electrical
NUMBER_OF_BULBS5
BULB_TYPEPCB Integrated
LTTYPELED
BULB_INCLUDEDI
COLOR_TEMP3000
DIMMABLE3-in-1 Triac, ELV, or 0-10V
CRI90
LUMENS2500
INPUT_VOLTAGE120-277
OUTPUT_VOLTAGE24
PCB_BOARD_REPLACEABLE_Y
Compliance & Installation
SAFETY_RATINGDry
ADA_N
ENERGY_STARN
ENERGY_EFFICIENT_N
Shipping & Logistics
UNIT_INCREMENTS0
ORDER_MINIMUM0
WEIGHT24
UNIT_OF_MEASUREEA
CARTONS_PER_UNIT2
CARTON_CUBIC_FEET6.3
PACKED_WEIGHT27.7
PACKED_WEIGHT214.7
PACKED_WEIGHT30
BOX_WEIGHT27.7
CARTON_LENGTH119.75
CARTON_WIDTH119.75
CARTON_HEIGHT16
CARTON_LENGTH231.5
CARTON_WIDTH219.75
CARTON_HEIGHT213.75
CARTON_LENGTH30
CARTON_WIDTH30
CARTON_HEIGHT30
SHIPPED_VIAUPS
Media & Resource URLs
ImageURLhttps://www.studiomlighting.com/hi_res_images/SM49315MSCL.jpg
AlternativeViewURL1https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_01.jpg
AlternativeViewURL2https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_02.jpg
AlternativeViewURL3https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_03.jpg
MODELSM49315
ProdSpecURLhttps://www.studiomlighting.com/prodspec/SM49315MSCL
LineDrawingURLhttps://www.studiomlighting.com/images/line_drawings/SM49315.jpg
All Manufacturer Columns
SKUSM49315MSCL
UPC783209359949
PRODUCT_NAMERay Dance-Multi-Light Pendant
THEMERay Dance
SHORT_DESCRay Dance 5-Light LED Multi-Pendant
CATEGORYMulti-Light Pendant
ALTERNATE CATEGORYSingle Pendant
UNIT_INCREMENTS0
ORDER_MINIMUM0
HEIGHT12
LENGTH17.25
WIDTH19
FINISH_IDAL
FINISH_DESCBrushed Aluminum
GLASS_IDMSCL
GLASS_DESCSmoke and Clear
UNIT_OF_MEASUREEA
WEIGHT24
CARTONS_PER_UNIT2
CARTON_CUBIC_FEET6.3
PACKED_WEIGHT27.7
NUMBER_OF_BULBS5
BULB_TYPEPCB Integrated
LTTYPELED
BULB_INCLUDEDI
SAFETY_RATINGDry
SHIPPED_VIAUPS
STATUSActive
DESIGNERSignature
ENERGY_STARN
SHADE_BOTTOM0
SHADE_TOP0
ITEM INTRO DATE46023
CANOPY_LENGTH15.75
WARRANTY1
ADA_N
CANOPY_HEIGHT1.5
CANOPY_WIDTH15.75
WIRE_LENGTH120
MATERIALAluminum,Steel
PROD_OA_HEIGHT135
PROD_OA_MIN_HEIGHT15
COLOR_TEMP3000
DIMMABLE3-in-1 Triac, ELV, or 0-10V
CRI90
SHADE_MATERIALGlass
LUMENS2500
INPUT_VOLTAGE120-277
OUTPUT_VOLTAGE24
CARTON_LENGTH119.75
CARTON_WIDTH119.75
CARTON_HEIGHT16
CARTON_LENGTH231.5
CARTON_WIDTH219.75
CARTON_HEIGHT213.75
CARTON_LENGTH30
CARTON_WIDTH30
CARTON_HEIGHT30
ENERGY_EFFICIENT_N
NUMBER_OF_TIERS0
PACKED_WEIGHT214.7
PACKED_WEIGHT30
BOX_WEIGHT27.7
PCB_BOARD_REPLACEABLE_Y
ImageURLhttps://www.studiomlighting.com/hi_res_images/SM49315MSCL.jpg
AlternativeViewURL1https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_01.jpg
AlternativeViewURL2https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_02.jpg
AlternativeViewURL3https://www.studiomlighting.com/hi_res_images/alternative_view/SM49315MSCL_03.jpg
MODELSM49315
ProdSpecURLhttps://www.studiomlighting.com/prodspec/SM49315MSCL
LineDrawingURLhttps://www.studiomlighting.com/images/line_drawings/SM49315.jpg
