American Lighting

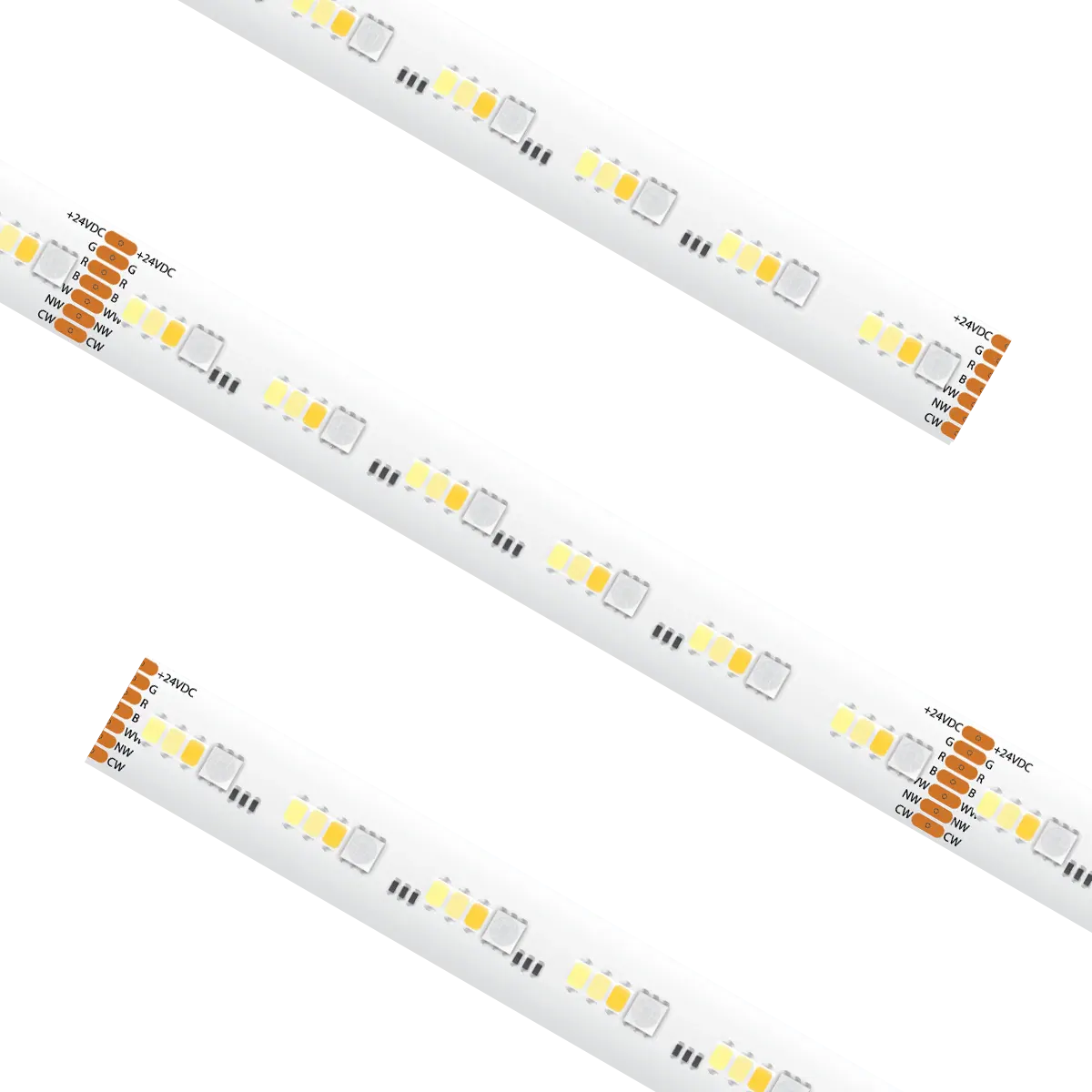

Spec Grade Tape Light RGB+Wide Range Tunable White
RGB + Wide Range Tuanble tape light is the ultimate solution in color changing RGB linear lighting technology. With RGBTWR, not only do you have a virtually unlimited RGB palette of color combinations, you also have the ability to adjust true white light ranging from 1800K up to 6000K. Providing intense color saturation, transition effects, and fade to white lighting effects.
- Dynamic RGB+Wide Range Tunable White 1800K-6000K color mixing capabilities
- Create trillions of color combinations for impactful installations
- Features 3-in-1 RGB LEDs with alternating 1800K, 3000K, and 6000K LEDs
- Lumen output ranging up to 385Lm per foot
- Cuttable every 3.94” with 13.1ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP54 rating featuring nano-coating protective layer
- Control via DMX for color and dimming (requires DMX decoder)
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
24V DC • 410Lm/ft • 7W/ft
Manufacturer item number: SPTL-RGBTWR
Product Dossier
- SKU
- SPTL-RGBTWR
- Brand
- American Lighting
- Fixture Type
- Trulux Tape
- Price
- $228.10
- Availability
- Available to order
- Sku
- Sptl rgbtwr
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
RGB + Wide Range Tuanble tape light is the ultimate solution in color changing RGB linear lighting technology. With RGBTWR, not only do you have a virtually unlimited RGB palette of color combinations, you also have the ability to adjust true white light ranging from 1800K up to 6000K. Providing intense color saturation, transition effects, and fade to white lighting effects.
- Dynamic RGB+Wide Range Tunable White 1800K-6000K color mixing capabilities
- Create trillions of color combinations for impactful installations
- Features 3-in-1 RGB LEDs with alternating 1800K, 3000K, and 6000K LEDs
- Lumen output ranging up to 385Lm per foot
- Cuttable every 3.94” with 13.1ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP54 rating featuring nano-coating protective layer
- Control via DMX for color and dimming (requires DMX decoder)
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
24V DC • 410Lm/ft • 7W/ft
Manufacturer item number: SPTL-RGBTWR
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
