American Lighting

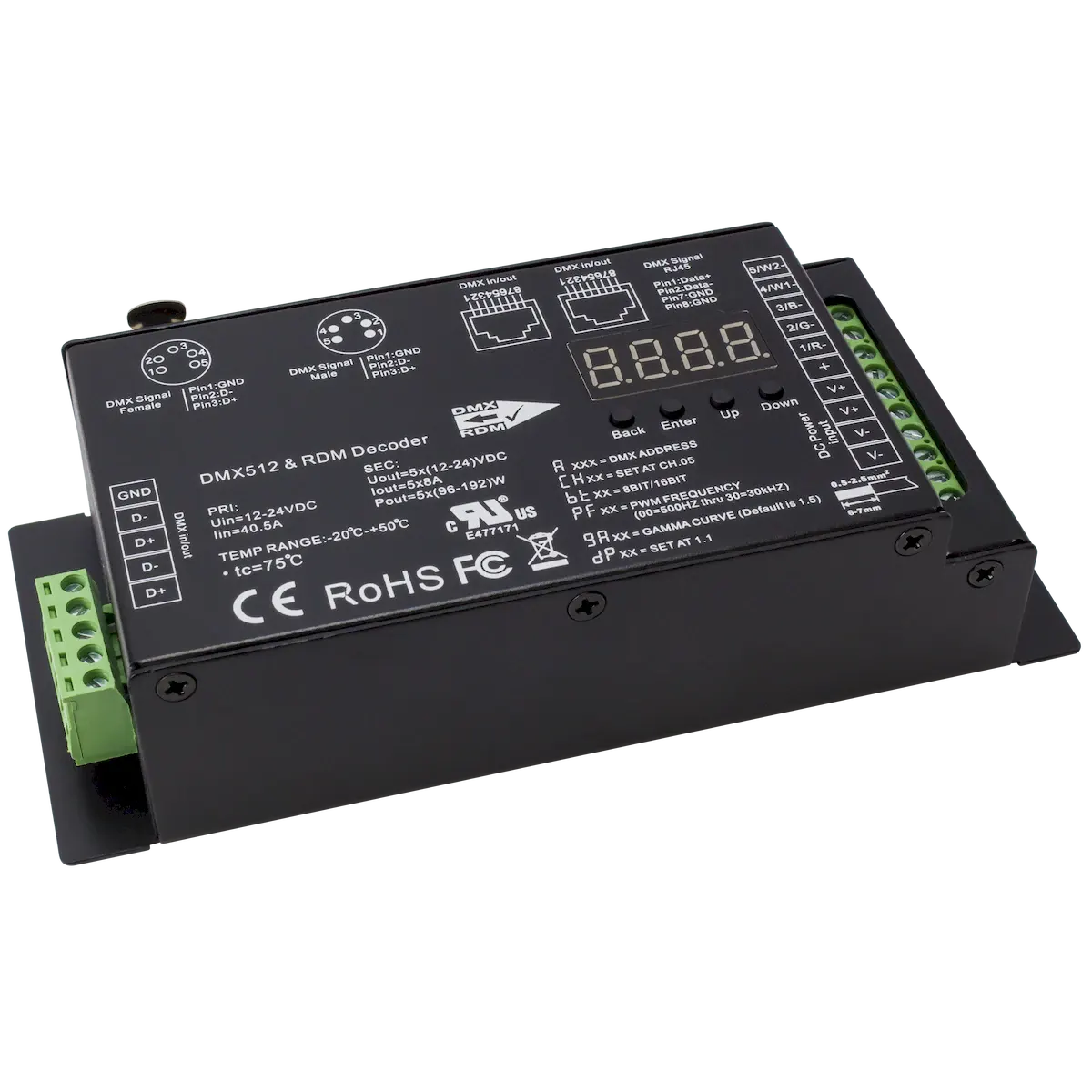

DMX Decoder: 5-Channel w/RJ45
The DMX 5-Channel Decoder translates DMX signals into the PWM control signal used by RGB LED lights, and allows for flawless integration into new and existing DMX installations. Using the 5-channel DMX receiver, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications.
- 5-channel capable output (8A per channel max)
- Compatible with single color, tunable, and RGB based neon or tape light
- Features easy to use RJ45, XLR5, or direct wire DMX inputs and outputs
- Link multiple receivers for larger installs required separate addresses
- 8 bit or 16 bit PWM output resolution ratio
- Requires 12-24V DC input and DMX controller for operation
Trulux 5-Channel DMX Receiver • Decoder
Manufacturer item number: REC-DMX-RJ45A-5CH
Product Dossier
- SKU
- REC-DMX-RJ45A-5CH
- Brand
- American Lighting
- Fixture Type
- Controls
- Price
- $101.85
- Availability
- Available to order
- Sku
- Rec dmx rj45a 5ch
FixtureFarm Trade Document
Generate Product Spec Sheet
Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.FixtureFarm Lighting Submittal
Add This Fixture to a Project Submittal
Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.Designer Specification Suite
Complete technical data for trade professionals
Designer fixture information
The DMX 5-Channel Decoder translates DMX signals into the PWM control signal used by RGB LED lights, and allows for flawless integration into new and existing DMX installations. Using the 5-channel DMX receiver, you are no longer limited to just DMX fixtures, seamlessly integrate color changing neon or tape light with ease for temporary or permanent applications.
- 5-channel capable output (8A per channel max)
- Compatible with single color, tunable, and RGB based neon or tape light
- Features easy to use RJ45, XLR5, or direct wire DMX inputs and outputs
- Link multiple receivers for larger installs required separate addresses
- 8 bit or 16 bit PWM output resolution ratio
- Requires 12-24V DC input and DMX controller for operation
Trulux 5-Channel DMX Receiver • Decoder
Manufacturer item number: REC-DMX-RJ45A-5CH
Trade Resources
FixtureFarm displays every available trade resource we receive: specification PDFs, installation instructions, line drawings, technical drawings, backplate details, photometric files, CAD / IES files, video, warranty, and energy documentation.
