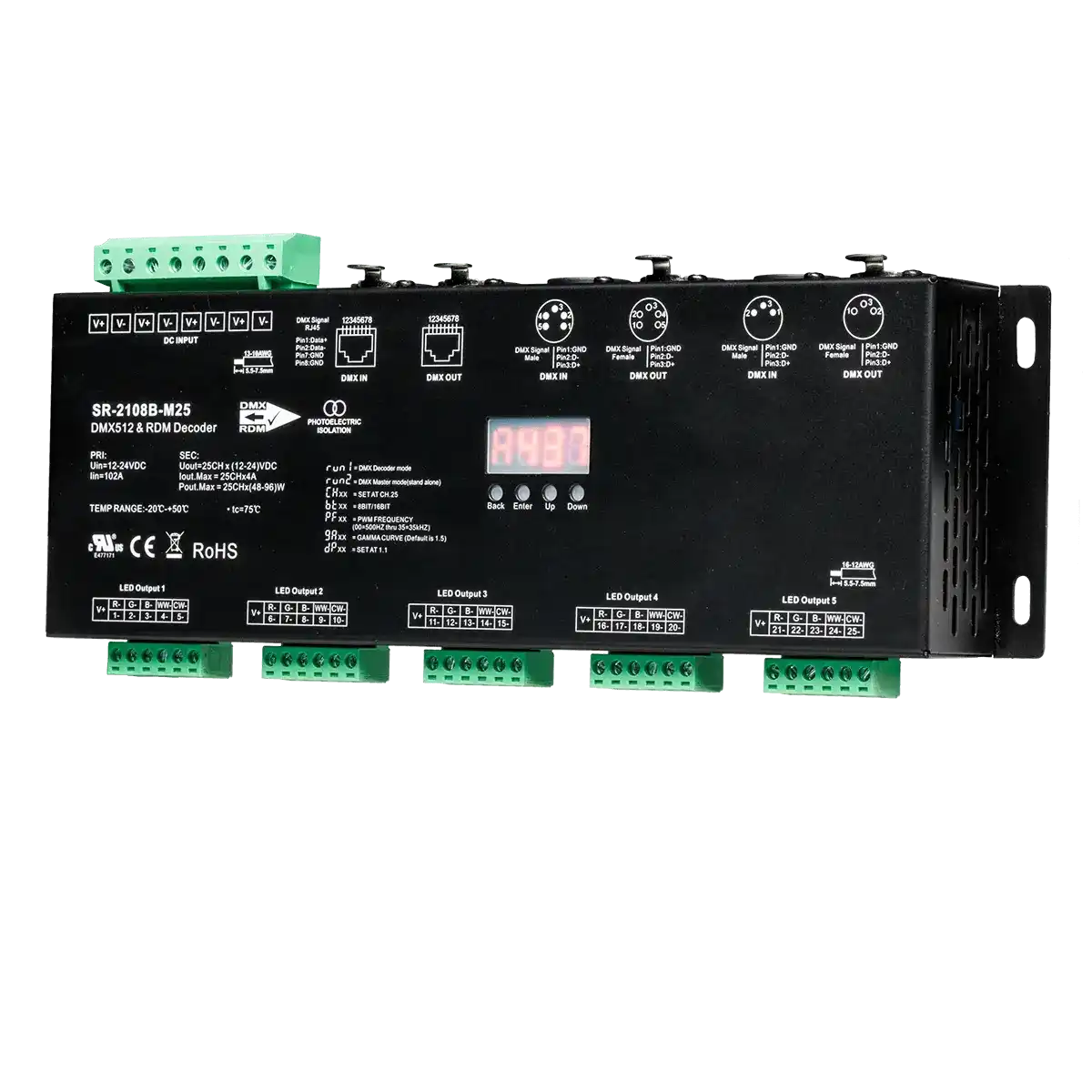

DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

American Lighting

DMX+RDM Decoder: 25CH (5x5CH) with XLR3, XLR5 and RJ45 connections

5X5 Channel DMX signal receiver/decoder for use with DMX controllers and low-voltage lighting.

  • RJ45, XLR3, or XLR5
  • 8 Bit or 16 bit PWM output resolution ratio
  • 25 total PWM output channels (5 ports x 5 channels)
  • Multi-Group DMX RGBW channel control
  • Up to 25 channel max *See drawings on next page*
  • 0.1 - 9.9 Gamma value output dimming curve range
  • Metal housing with digital display
  • Requires master DMX controller and 12-24V DC input for operation (Sold separately)

    Trulux 5X5-Channel DMX Receiver • Decoder

    Manufacturer item number: AML-DEC-DMX-RJ45-5X5CH

    Product Dossier

    SKU
    AML-DEC-DMX-RJ45-5X5CH
    Brand
    American Lighting
    Fixture Type
    Controls
    Price
    $559.96
    Availability
    Available to order
    Sku
    Aml dec dmx rj45 5x5ch

    FixtureFarm Trade Document

    Generate Product Spec Sheet

    Create, print, email, or share a branded product sheet with fixture data, dimensions, electrical details, compliance notes, resources, manufacturer fields, and a QR code back to the product page.

    FixtureFarm Lighting Submittal

    Add This Fixture to a Project Submittal

    Assign this fixture to a room, then generate one combined lighting submittal with all selected product spec sheets grouped by room.
    Open Submittal Builder

    Designer Specification Suite

    Complete technical data for trade professionals

    SKUAML-DEC-DMX-RJ45-5X5CH
    BrandAmerican Lighting
    Product TypeControls
    Price$559.96
    AvailabilityAvailable to order

    Designer fixture information

    5X5 Channel DMX signal receiver/decoder for use with DMX controllers and low-voltage lighting.

    • RJ45, XLR3, or XLR5
    • 8 Bit or 16 bit PWM output resolution ratio
    • 25 total PWM output channels (5 ports x 5 channels)
    • Multi-Group DMX RGBW channel control
    • Up to 25 channel max *See drawings on next page*
    • 0.1 - 9.9 Gamma value output dimming curve range
    • Metal housing with digital display
    • Requires master DMX controller and 12-24V DC input for operation (Sold separately)

      Trulux 5X5-Channel DMX Receiver • Decoder

      Manufacturer item number: AML-DEC-DMX-RJ45-5X5CH
